Recommended Use: Label PrintPrint Color Capability: MonochromeMaximum Mono Print Speed: 127 mm/sMaximum Print Resolution (dpi): 203Maximum Print Length: 90" (2286 mm)Maximum Print Width: 2.13"Barcode Symbology Supported: - 1D
- Code 39
- Code 93
- Code 128 UCC
- Code 128
- Codabar
- Interleaved 2 of 5
- EAN-8
- EAN-13
- EAN 128
- UPC-A
- UPC-E
- EAN and UPC 2(5) Digits Add-On
- MSI
- Plessey
- POSTNET
- China Post
- GS1 DataBar
- Code 11
- 2D
- PDF417
- Maxi Code
- Data Matrix
- QR Code
- AZTEC
Real Time Clock: YesApplication/Usage: DesktopStandard Memory: 8 MBUSB Host: YesSerial Port: YesUSB: YesMedia Type: - Continuous Label
- Die-cut Label
- Black Mark
- Fanfold
- Notched
- Wristband
Media Sensor: - Head Open Sensor
- Multi-position Transmissive/Gap Sensor
- Moveable Reflective/Black Mark Sensor
Media Thickness: 7.5 milMaximum Roll Diameter: 5"Maximum Label Width: 2.36" (59.94 mm)Maximum Label Length: 90" (2286 mm)Language Emulation: TSPL-EZPrint Head Life: 25 kmPower Source: AC SupplyOperating Temperature: 41°F (5°C) - 104°F (40°C)Operating Relative Humidity: 25% - 85%Storage Temperature: -40°F (-40°C) - 140°F (60°C)Storage Relative Humidity: 10% - 90%Form Factor: Wall MountProduct Color: BeigeHeight: 6.73" (171 mm)Width: 4.29" (109 mm)Depth: 8.23" (209 mm)Weight (Approximate): 1.20 kgPower Cable Localization: USCables Included: Power Adapter Included: YesOptional Connectivity: - Wireless LAN
- Bluetooth
- Ethernet
Platform Supported: PCCertifications & Standards: FCC Class B, CE Class B, C-Tick Class B, UL, CUL, TÜV/Safety, CCC, ENERGY STAR®Energy Star: YesEnvironmentally Friendly: Yes
[custom-specifications]
SpecificationsManufacturer: TSC Auto ID Technology Co., Ltd
Manufacturer Part Number: 99-039A001-0001
Manufacturer Website Address: http://www.tscprinters.com
Brand Name: TSC Printers
Product Series: TDP-225
Product Model: TDP-225

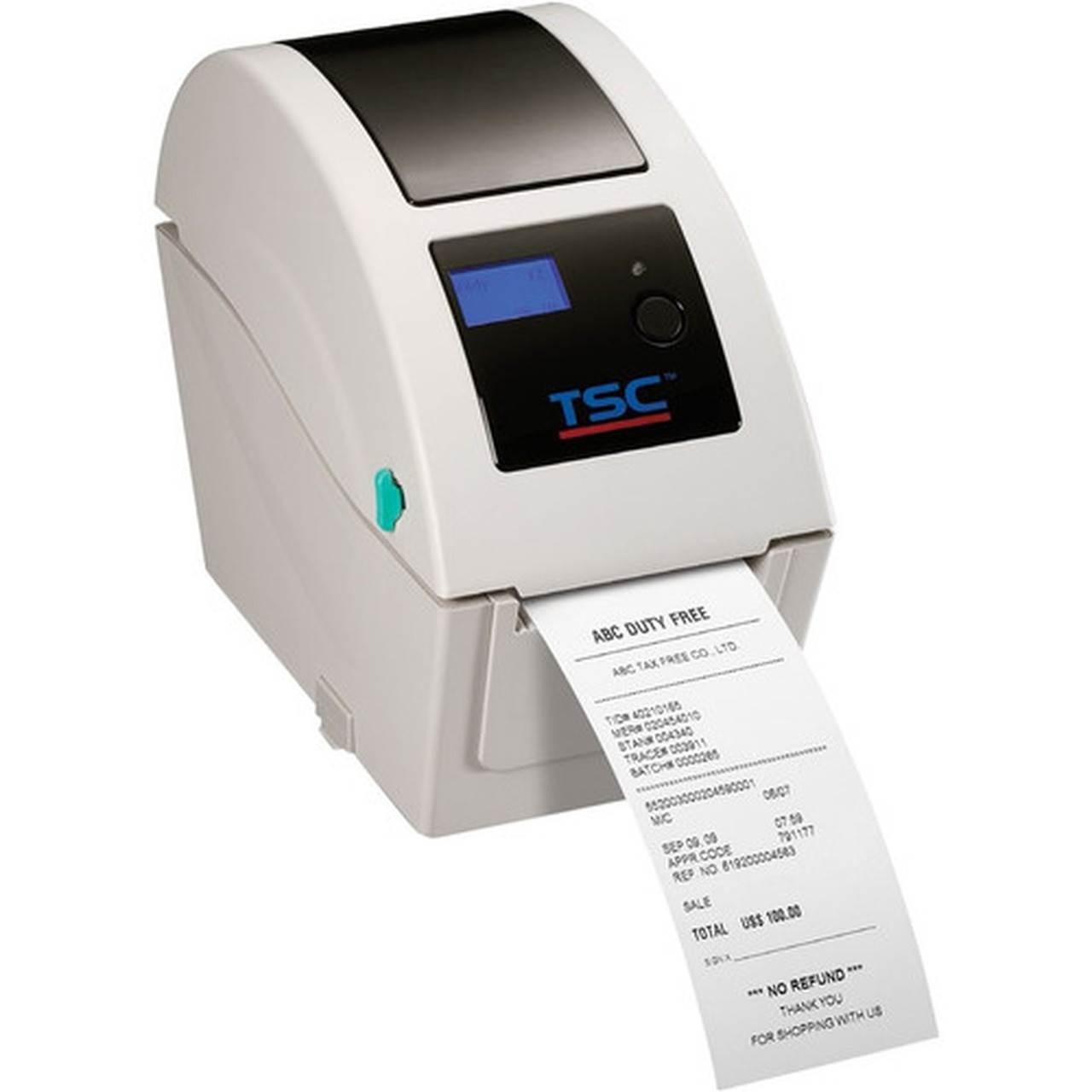

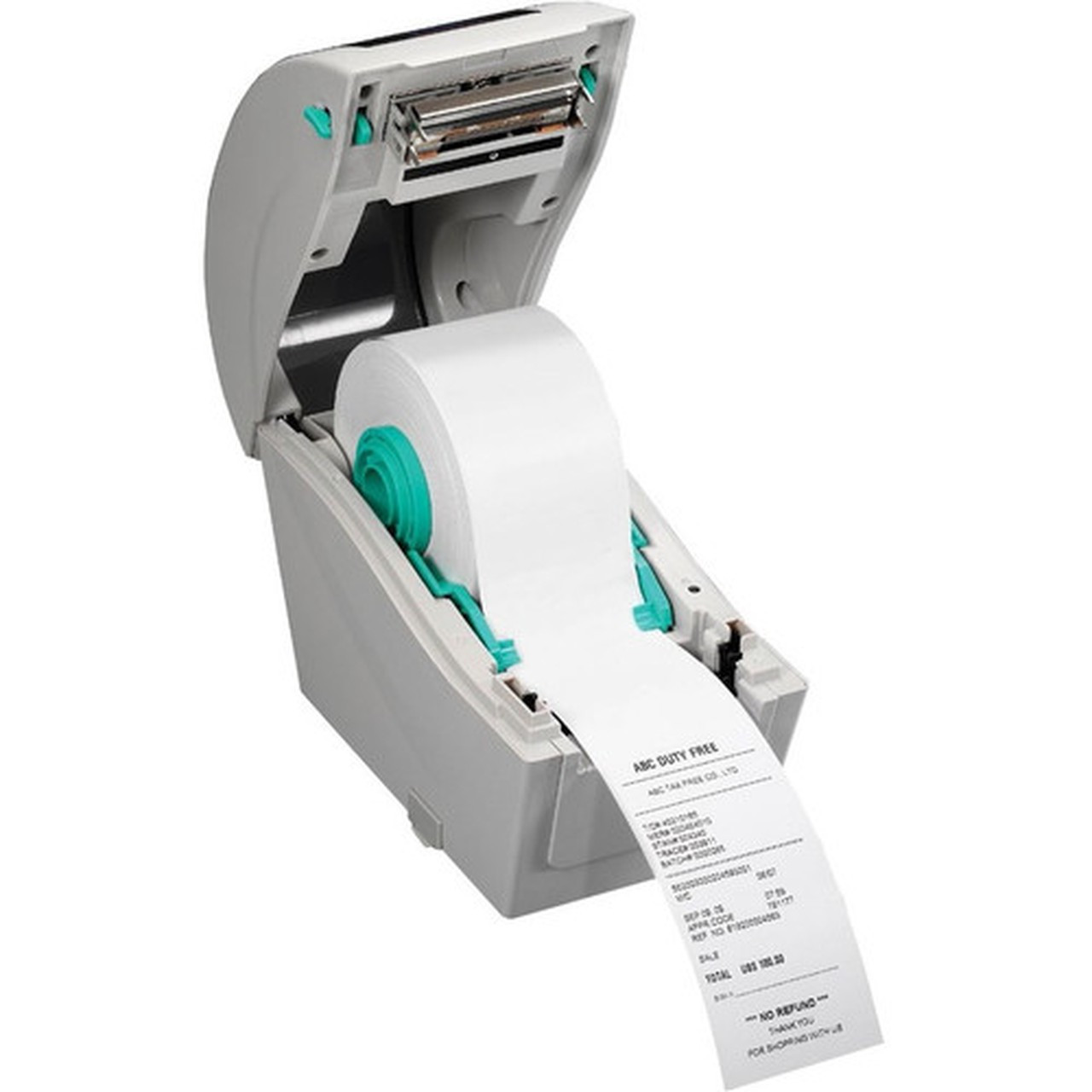

Product Name: TDP-225 Direct Thermal Printer
Product Type: Direct Thermal Printer
Technical InformationRecommended Use: Label Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 127 mm/s
Maximum Print Resolution (dpi): 203
Maximum Print Length: 90" (2286 mm)
Maximum Print Width: 2.13"
Barcode Symbology Supported:
- 1D
- Code 39
- Code 93
- Code 128 UCC
- Code 128
- Codabar
- Interleaved 2 of 5
- EAN-8
- EAN-13
- EAN 128
- UPC-A
- UPC-E
- EAN and UPC 2(5) Digits Add-On
- MSI
- Plessey
- POSTNET
- China Post
- GS1 DataBar
- Code 11
- 2D
- PDF417
- Maxi Code
- Data Matrix
- QR Code
- AZTEC
Real Time Clock: Yes
Application/Usage: Desktop
MemoryStandard Memory: 8 MB
Interfaces/PortsUSB Host: Yes
Serial Port: Yes
USB: Yes
Media Types & HandlingMedia Type:
- Continuous Label
- Die-cut Label
- Black Mark
- Fanfold
- Notched
- Wristband
Media Sensor:
- Head Open Sensor
- Multi-position Transmissive/Gap Sensor
- Moveable Reflective/Black Mark Sensor
Media Thickness: 7.5 mil
Maximum Roll Diameter: 5"
Maximum Label Width: 2.36" (59.94 mm)
Maximum Label Length: 90" (2286 mm)
Fonts & EmulationLanguage Emulation: TSPL-EZ
ReliabilityPrint Head Life: 25 km
Power DescriptionPower Source: AC Supply
Environmental ConditionsOperating Temperature: 41°F (5°C) - 104°F (40°C)
Operating Relative Humidity: 25% - 85%
Storage Temperature: -40°F (-40°C) - 140°F (60°C)
Storage Relative Humidity: 10% - 90%
Physical CharacteristicsForm Factor: Wall Mount
Product Color: Beige
Height: 6.73" (171 mm)
Width: 4.29" (109 mm)
Depth: 8.23" (209 mm)
Weight (Approximate): 1.20 kg
MiscellaneousPower Cable Localization: US
Cables Included:
Power Adapter Included: Yes
Optional Connectivity:
- Wireless LAN
- Bluetooth
- Ethernet
Platform Supported: PC
Certifications & Standards: FCC Class B, CE Class B, C-Tick Class B, UL, CUL, TÜV/Safety, CCC, ENERGY STAR®
Energy Star: Yes
Environmentally Friendly: Yes
