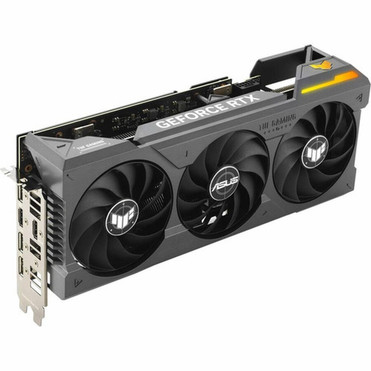

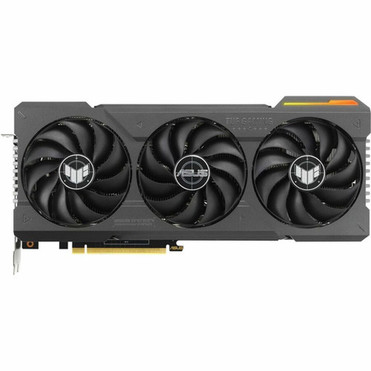

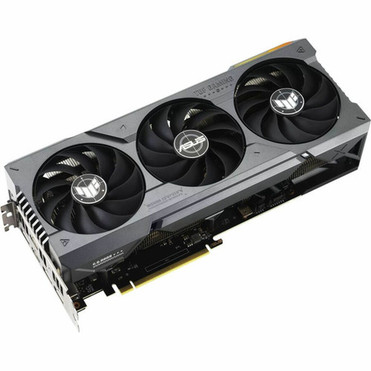

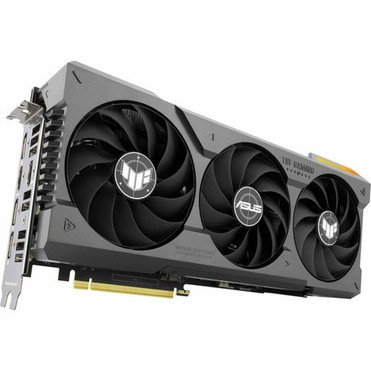

TUF NVIDIA GeForce RTX 4070 Ti SUPER Graphic Card - 16 GB GDDR6X - 7680 x 4320 - 2.64 GHz Boost Clock - 256 bit Bus Width - PCI 4.0 - (TUF-RTX4070TIS-16G-GAMING)

Marketing Information:

ASUS TUF Gaming GeForce RTX™ 4070 Ti SUPER 16GB GDDR6X with DLSS 3, lower temps, and enhanced durability

• Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing.
• 4th Generation Tensor Cores:Up to 4x performance with DLSS 3 vs. brute-force rendering
• 3rd Generation RT Cores:Up to 2X ray tracing performance
• Axial-tech fansscaled up for 21% more airflow
• Dual ball fan bearingslast up to twice as long as conventional designs
• Military-grade capacitorsrated for 20K hours at 105C make the GPU power rail more durable
• Metal exoskeletonadds structural rigidity and vents to increase heat reliability
• Auto-Extremeprecision automated manufacturing for higher reliability
• GPU Tweak IIIsoftware provides intuitive performance tweaking, thermal controls, and system monitoring

ARMED FOR FLOW

NVIDIA Ada Lovelace architecture elevated by buffed cooling and power delivery, and backed with an arsenal of rugged reinforcements to cover your six. Lock, load, and dominate with the TUF Gaming GeForce RTX™ 4070 Ti SUPER.

For specific instructions for connecting this graphics card to your power supply unit, please see the FAQ section.

NVIDIA Ada Lovelace Architecture Designed to Give You Superpowers

New Streaming Multiprocessors

• Up to 2X performance and power efficiency

Fourth-Gen Tensor Cores

• Up to 4X performance with DLSS 3 vs. brute-force rendering

Third-Gen RT Cores

• Up to 2X ray tracing performance

AXIAL-TECH UPGRADES | Air Superiority

Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 21% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.

NEW DIRECTION | Well-maintained Formation

The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55 Celsius, referencing a speed curve that balances performance and acoustics for work or play.

3.25-SLOT DESIGN | Phase That Blaze

A vapor chamber and generously oversized heatsink combo efficiently soak up heat from the GeForce RTX 4070 Ti SUPER GPU so that it can be whisked away by the three Axial-tech fans

MILITARY-GRADE 20K CAPACITORS | Resilient Squadron

A lineup of capacitors rated to last 20,000 hours at 105 Celsius brings higher temperature and ripple tolerance to the GPU power rail, arming the card for long-term deployment in challenging conditions.

API Supported: OpenGL 4.6

Number of Monitors Supported: 4

Maximum Digital Display Resolution: 7680 x 4320

CUDA Cores: 8448

Features: Triple-fan Cooler

Chipset Manufacturer: NVIDIA

Chipset Line: GeForce

Chipset Series: RTX

Chipset Model: RTX 4070 Ti SUPER

GPU Boost Clock: 2.64 GHz

Standard Memory: 16 GB

Memory Technology: GDDR6X

Bus Width: 256 bit

Host Interface: PCI Express 4.0

DisplayPort: Yes

Number of DisplayPort Outputs: 3

HDMI: Yes

Number of HDMI Outputs: 2

Power Supply Wattage: 750 W

Power Connector: 1x 16-pin

Slot Space Required: Triple

Form Factor: Plug-in Card

Cooler Type: Fan Cooler

Height: 2.56" (65 mm)

Width: 5.43" (138 mm)

Length: 12.01" (305 mm)

Platform Supported: PC
