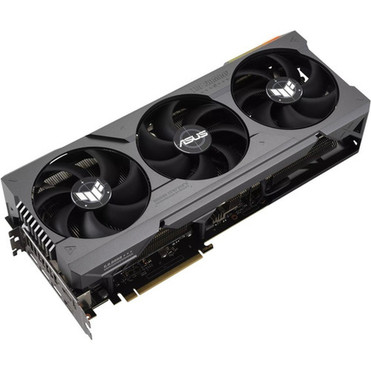

TUF NVIDIA GeForce RTX 4090 Graphic Card - 24 GB GDDR6X - 7680 x 4320 - 2.60 GHz Boost Clock - 384 bit Bus Width - PCI Express 4.0 - - (TUF-RTX4090-O24G-GAMING)

Marketing Information:

ASUS TUF Gaming GeForce RTX® 4090 OC Edition 24GB GDDR6X optimized inside and out for lower temps and durability.

• NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
• 4th Generation Tensor Cores: Up to 2X AI performance
• 3rd Generation RT Cores: Up to 2X ray tracing performance
• Axial-tech fans scaled up to deliver 23% more airflow
• Dual Ball Fan Bearings last up to twice as long as conventional designs
• Military-grade Capacitors rated for 20K hours at 105C make the GPU power rail more durable
• Metal Exoskeleton adds structural rigidity and vents to increase heat dissipation
• Auto-Extreme precision automated manufacturing for higher reliability
• GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring

ARMED FOR FLOW

NVIDIA Ada Lovelace architecture elevated by buffed cooling and power delivery,
and backed with an arsenal of rugged reinforcements to cover your six.
Lock, load, and dominate with the TUF Gaming GeForce RTX® 4090.

The Ultimate Platform for Gamers and Creators | Powered by GeForce RTX 40 Series

• New Streaming Multiprocessors

  Up to 2x performance and power efficiency

• Fourth-Gen Tensor Cores

  Up to 2x AI performance

• Third-Gen RT Cores

  Up to 2x ray tracing performance

Cutting-Edge GPUs
NVIDIA Ada Lovelace architecture

Realistic and Immersive Graphics
Dedicated Ray Tracing Cores

AI-Accelerated Performance
NVIDIA DLSS 3

Game-Winning Responsiveness
NVIDIA Reflex low-latency platform

Built for Live Streaming
NVIDIA Encoder

AI-Enhanced Voice and Video
NVIDIA Broadcast app

Fast-Track Your Creativity
NVIDIA Studio

Performance and Reliability
Game Ready and Studio Drivers

AXIAL-TECH UPGRADESAir Superiority

Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 23% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.

NEW DIRECTIONWell-maintained Formation

The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55 Celsius, referencing a speed curve that balances performance and acoustics for work or play.

API Supported: OpenGL 4.6

Number of Monitors Supported: 4

Maximum Digital Display Resolution: 7680 x 4320

CUDA Cores: 16384

Chipset Manufacturer: NVIDIA

Chipset Line: GeForce

Chipset Series: RTX

Chipset Model: RTX 4090

GPU Boost Clock: 2.60 GHz

Standard Memory: 24 GB

Memory Technology: GDDR6X

Bus Width: 384 bit

Host Interface: PCI Express 4.0

DisplayPort: Yes

Number of DisplayPort Outputs: 3

HDMI: Yes

Number of HDMI Outputs: 2

Power Supply Wattage: 850 W

Power Connector: 1x 16-pin

Slot Space Required: Quad

Form Factor: Plug-in Card

Cooler Type: Fan Cooler

Height: 2.86" (72.60 mm)

Width: 5.91" (150 mm)

Length: 13.71" (348.20 mm)

Package Contents:

• Gaming GeForce RTX 4090 OC Edition 24GB GDDR6X Graphic Card
• 1 x Collection Card
• 1 x Speedsetup Manual
• 1 x Adapter Cable
• 1 x TUF Graphics Card Holder
• 1 x TUF Velcro Hook & Loop
• 1 x Thank you Card

Platform Supported: PC

Country of Origin: China

Limited Warranty: 3 Year
