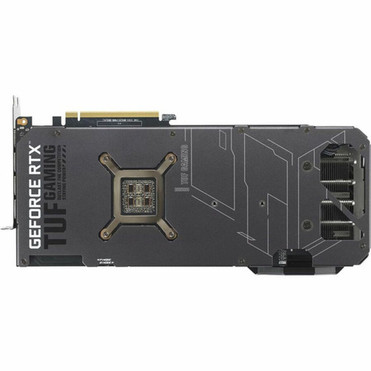

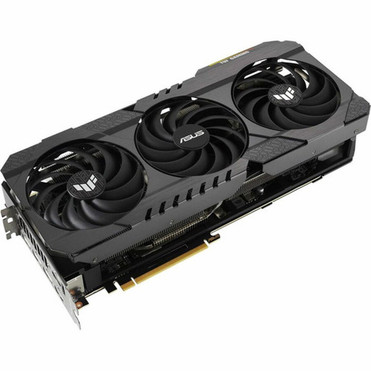

TUF NVIDIA GeForce RTX 4090 Graphic Card - 24 GB GDDR6X - 7680 x 4320 - 2.60 GHz Boost Clock - 384 bit Bus Width - PCI Express 4.0 - - (TUF-RTX4090-O24G-OG-GAMIN)

Marketing Information:

ASUS TUF Gaming GeForce RTX 4090 24GB GDDR6X OG OC Edition with DLSS 3, lower temps, and enhanced durability

• Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing.
• 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
• 3rd Generation RT Cores: Up to 2X ray tracing performance
• OC edition: 2595MHz (OC mode)/ 2565MHz (Default mode)
• Axial-tech fan design has been tuned with a reversed central fan direction for less turbulence
• Dual ball fan bearings last up to twice as long as conventional designs
• Military-grade capacitors rated for 20K hours at 105C make the GPU power rail more durable
• Auto-Extreme precision automated manufacturing for higher reliability
• GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring

TUF Gaming GeForce RTX 4090 | Built TUF

NVIDIA Ada Lovelace architecture elevated by buffed cooling and power delivery, and backed with an arsenal of rugged reinforcements to cover your six. Lock, load, and dominate with the TUF Gaming GeForce RTX 4090.

Please see the FAQ section for specific instructions on the proper usage of this advanced 16-pin cable

[Graphics Card & PSU] How to plug in the 16-pin power cable properly

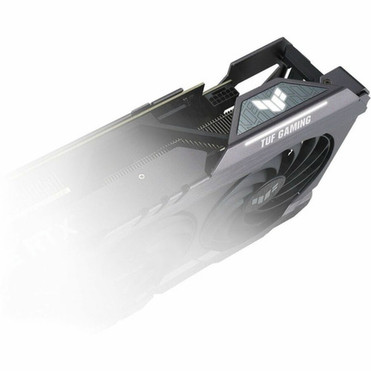

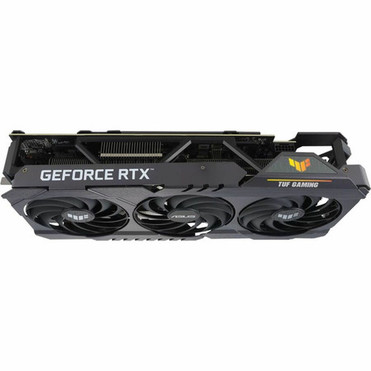

Vented Exoskeleton Larger Axial-tech Fans Massive Heatsinks

The Ultimate Platform for Gamers and Creators Powered by GeForce RTX 40 Series and DLSS 3

New Streaming Multiprocessors

• Up to 2x performance and power efficiency

Fourth-Gen Tensor Cores

• Up to 4x performance with DLSS 3 vs. brute-force rendering

Third-Gen RT Cores

• Up to 2x ray tracing performance

Cutting-Edge GPUs

NVIDIA Ada Lovelace architecture

Realistic and Immersive Graphics

Dedicated Ray Tracing Cores

AI-Accelerated Performance

NVIDIA DLSS 3

Game-Winning Responsiveness

NVIDIA Reflex low-latency platform

Built for Live Streaming

NVIDIA Encoder

AI-Enhanced Voice and Video

NVIDIA Broadcast app

Fast-Track Your Creativity

NVIDIA Studio

Performance and Reliability

Game Ready and Studio Drivers

API Supported: OpenGL 4.6

Number of Monitors Supported: 4

Maximum Digital Display Resolution: 7680 x 4320

CUDA Cores: 16384

Chipset Manufacturer: NVIDIA

Chipset Line: GeForce

Chipset Series: RTX

Chipset Model: RTX 4090

GPU Boost Clock: 2.60 GHz

Standard Memory: 24 GB

Memory Technology: GDDR6X

Bus Width: 384 bit

Host Interface: PCI Express 4.0

DisplayPort: Yes

Number of DisplayPort Outputs: 3

HDMI: Yes

Number of HDMI Outputs: 2

Power Supply Wattage: 850 W

Power Connector: 1x 16-pin

Slot Space Required: Triple

Form Factor: Plug-in Card

Cooler Type: Fan Cooler

Height: 2.47" (62.80 mm)

Width: 5.52" (140.20 mm)

Length: 12.83" (325.90 mm)

Package Contents:

• Gaming GeForce RTX 4090 24GB GDDR6X OG OC Edition Graphic Card
• 1 x Collection Card
• 1 x Speedsetup Manual
• 1 x Adapter Cable
• 1 x Thank you Card
• 1 x TUF Velcro Hook & Loop

Platform Supported: PC

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 36 Month
