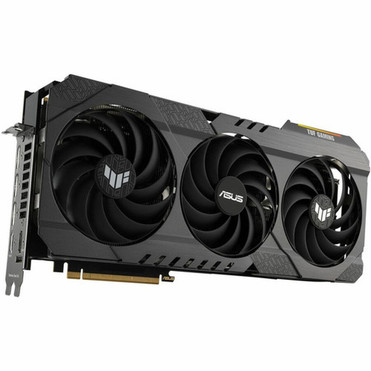

TUF NVIDIA GeForce RTX 4090 Graphic Card - 24 GB GDDR6X - Full-height - 7680 x 4320 - 2.60 GHz Boost Clock - 384 bit Bus Width - PCI - (TUF-RTX4090-O24G-OG-GAMING)

Marketing Information:

AXIAL-TECH UPGRADES | Air Superiority

TUF Gaming cards leverage our tried-and-true Axial-tech fan design, with three fans working in tandem to satisfy the thermal demands of NVIDIA's new high-octane design. The fans rely on dual ball fan bearings to ensure consistent performance and increased longevity compared to sleeve bearings and other bearing types.

NEW DIRECTION | Well-maintained Formation

The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55 Celsius, referencing a speed curve that balances performance and acoustics for work or play.

3.2-SLOT DESIGN | Phase That Blaze

A generously sized heatsink efficiently soak up heat from the GeForce RTX 4090 GPU so that it can be whisked away by the three Axial-tech fans.

MILITARY-GRADE 20K CAPACITORS | Resilient Squadron

A lineup of capacitors rated to last 20,000 hours at 105 Celsius brings higher temperature and ripple tolerance to the GPU power rail, arming the card for long-term deployment in challenging conditions.

VENTED EXOSKELETON | Stay Frosty

Most of the rear is swathed in a protective metal backplate that prominently features a wide vent. The vent allows hot air to escape towards chassis exhaust fans instead of being recycled back into the GPU cooler.

AUTO-EXTREME TECHNOLOGY| RELIABILITY BOOSTA

uto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.

AURA SYNC | Light 'em Up!

Aura-compatible ARGB lighting on the shroud adds a dash of customizable color or functional effects to your build. Pair up with a vast range of compatible system components and coordinate the glow to create a theme that's uniquely you.

API Supported: OpenGL 4.6

Number of Monitors Supported: 4

Maximum Digital Display Resolution: 7680 x 4320

CUDA Cores: 16384

Chipset Manufacturer: NVIDIA

Chipset Line: GeForce

Chipset Series: RTX

Chipset Model: RTX 4090

GPU Boost Clock: 2.60 GHz

Standard Memory: 24 GB

Memory Technology: GDDR6X

Bus Width: 384 bit

Host Interface: PCI Express 4.0

DisplayPort: Yes

Number of DisplayPort Outputs: 3

HDMI: Yes

Number of HDMI Outputs: 2

Power Supply Wattage: 850 W

Power Connector: 1x 16-pin

Slot Space Required: Triple

Form Factor: Plug-in Card

Card Height: Full-height

Cooler Type: Fan Cooler

Height: 2.47" (62.80 mm)

Width: 5.52" (140.20 mm)

Length: 12.83" (325.90 mm)

Package Contents:

• 1 x TUF-RTX4090-O24G-OG-GAMING Graphic Card
• 1 x Collection Card
• 1 x Speedsetup Manual
• 1 x Adapter Cable
• 1 x Thank you Card
• 1 x TUF Velcro Hook & Loop

Platform Supported: PC

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 36 Month
