- Advanced Noise Immunity
- Superior Beam Performance
- Enhanced Scalability of airMAX® Networks

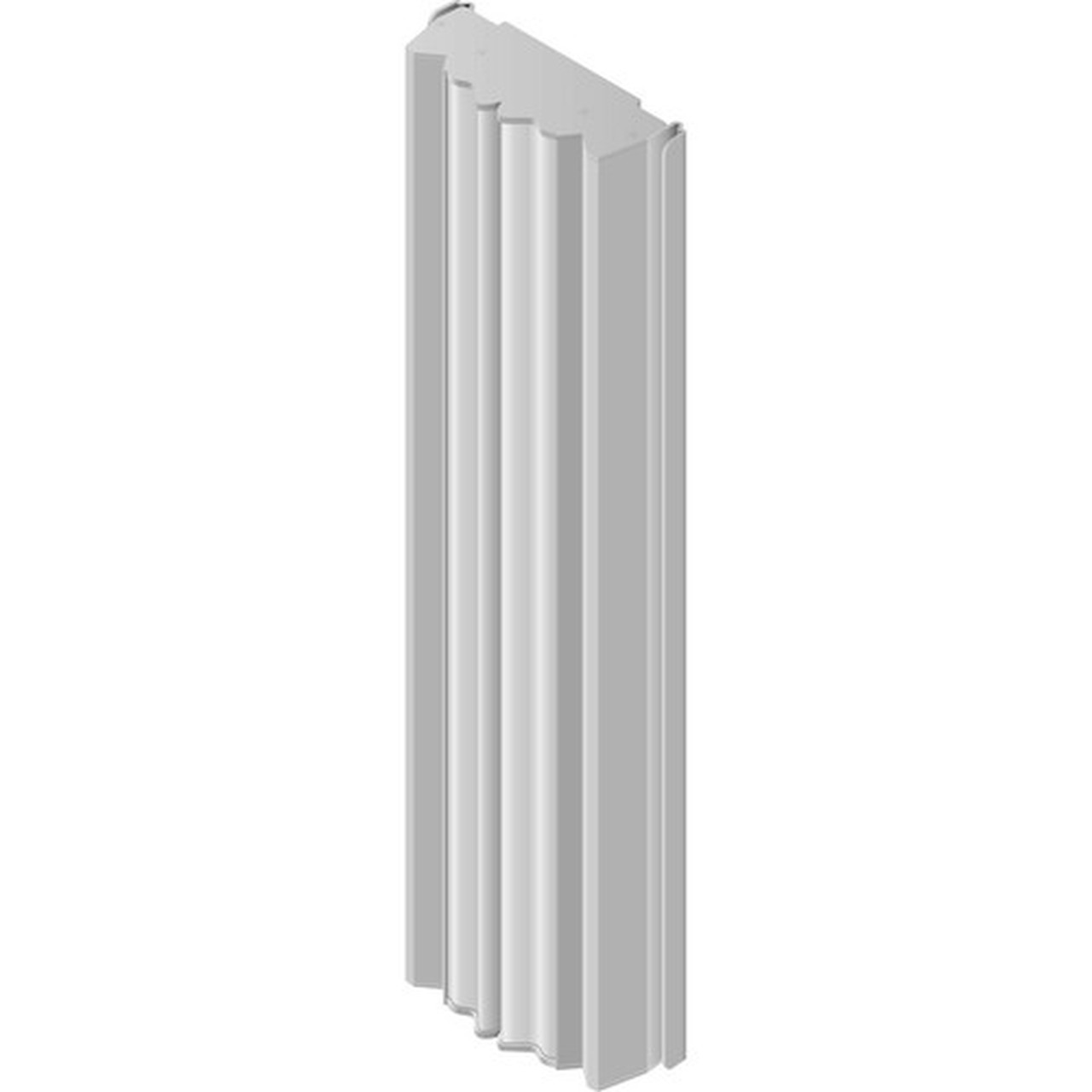

Marketing Information: airMAX® ac 2x2 BaseStation Sector Antenna
The airMAX® ac Sector Antennas feature significant advances in scalability, noise isolation, and beam performance to complement the Rocket™5ac radios in Point-to-MultiPoint (PtMP) networks. They are compatible with RocketM5 models; however, optimal performance requires the Rocket5ac.
Frequency Band Type: SHFOperating Frequency Range: 5.15 GHz to 5.85 GHzAntenna Gain (Isotropic): 22 dBiConnector Type: RFUSB: NoHeight: 29.53" (750 mm)Width: 8.46" (215 mm)Depth: 3.70" (94 mm)Form Factor: PoleWeight (Approximate): 6 kgApplication/Usage: Base StationPackage Contents: - 5 GHz 2x2 MIMO BaseStation Sector Antenna
- Protective Shroud
- 2 x U-Brackets
- 2 x Pole Brackets
- 2 x Pole Clamps
- 4 x Carriage Bolts (M8x135)
- 4 x Serrated Flange Bolts (M8x20)
- 8 x Serrated Flange Nuts (M8) Qty. 8)
- 2 x Weatherproof RF Cables
- Quick Start Guide
Compatibility: Ubiquiti Rocket 5ac R5AC-PTMP Base StationEnvironmentally Friendly: YesLimited Warranty: 1 Year
[custom-specifications]
SpecificationsManufacturer: Ubiquiti Inc.
Manufacturer Part Number: AM-5AC22-45
Manufacturer Website Address: http://www.ui.com
Brand Name: Ubiquiti
Product Line: airMAX
Product Model: AM-5AC22-45
Product Name: 5 GHz 2x2 MIMO BaseStation Sector Antenna
Product Type: Antenna
Technical InformationFrequency Band Type: SHF
Operating Frequency Range: 5.15 GHz to 5.85 GHz
Antenna Gain (Isotropic): 22 dBi
Interfaces/PortsConnector Type: RF
USB: No
Physical CharacteristicsHeight: 29.53" (750 mm)
Width: 8.46" (215 mm)
Depth: 3.70" (94 mm)
Form Factor: Pole
Weight (Approximate): 6 kg
MiscellaneousApplication/Usage: Base Station
Package Contents:
- 5 GHz 2x2 MIMO BaseStation Sector Antenna
- Protective Shroud
- 2 x U-Brackets
- 2 x Pole Brackets
- 2 x Pole Clamps
- 4 x Carriage Bolts (M8x135)
- 4 x Serrated Flange Bolts (M8x20)
- 8 x Serrated Flange Nuts (M8) Qty. 8)
- 2 x Weatherproof RF Cables
- Quick Start Guide
Compatibility: Ubiquiti Rocket 5ac R5AC-PTMP Base Station
Environmentally Friendly: Yes
WarrantyLimited Warranty: 1 Year
