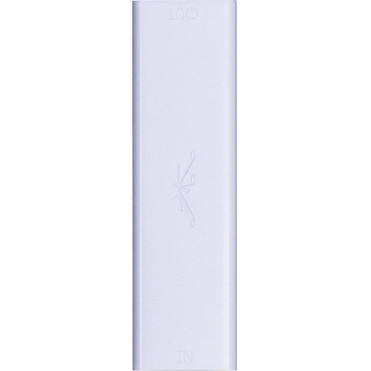

Ubiquiti INS-8023AF-I PoE Device Adapter - 802.3af Compliant Power Supply (INS-8023AF-I)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
- airMAX™
- airVision™
- UniFi™
- mFi™
Marketing Information:
The Instant 802.3af Adapter transforms almost any Ubiquiti PoE (Power over Ethernet) device into a fully compliant 48V, 802.3af-compatible product.
PoE Switch Compatibility
The Instant 802.3af Adapter works seamlessly with a variety of 802.3af switches for remote power control applications. As you manage and monitor your network, you can conveniently power or power cycle your remote devices using your 802.3af switch.
For ease of power management, you can centralize the 802.3af switch and power source, and you can include a UPS (Uninterruptible Power Supply) as a backup. This way your network continues to run even during a temporary power outage.
Ubiquiti Compatibility
Available in both indoor and outdoor versions, the Instant 802.3af Adapter is compatible with most Ubiquiti PoE devices using 100 Mbps ports, including:
Longer Cable Runs
High voltage carries power more efficiently (using less current) than low voltage. The Instant 802.3af Adapter enables longer 48V cable runs due to a more efficient power delivery - so your products can get the power they require even when they are located far from the 802.3af switch.
ESD/Surge Protection
The Instant 802.3af Adapter provides an additional ±15kV of Ethernet isolation for built-in protection that lessens the risk of ESD or surge damage to your devices.
Protection Type: Surge Protection,ESD Protection
Input Voltage: 48 V
Maximum Output Voltage: 18 V DC
Maximum Output Current: 700 mA
Input Ports: 1 x RJ-45
Output Ports: 1 x RJ-45
Height: 3.68" (93.50 mm)
Width: 1.06" (27 mm)
Depth: 0.85" (21.50 mm)
Weight (Approximate): 200 g
Compatibility:
Ubiquiti 802.3af Switches
Certifications & Standards:
802.3af
- Transforms PoE Devices into 48V, 802.3af-Compliant Products
- Works with 802.3af Switches for Remote Control Power Applications
- Enables Longer Cable Run Lengths
[custom-specifications]
Specifications | |
---|---|
Manufacturer | Ubiquiti Inc. |
Manufacturer Part Number | INS-8023AF-I |
Manufacturer Website Address | http://www.ui.com |
Brand Name | Ubiquiti |
Product Line | Instant |
Product Model | INS-8023AF-I |
Product Name | Instant INS-8023AF-I PoE Injector |
Product Type | PoE Injector | Technical Information |
Protection Type | Surge Protection,ESD Protection | Power Description |
Input Voltage | 48 V |
Maximum Output Voltage | 18 V DC |
Maximum Output Current | 700 mA | Interfaces/Ports |
Input Ports | 1 x RJ-45 |
Output Ports | 1 x RJ-45 | Physical Characteristics |
Height | 3.68" (93.50 mm) |
Width | 1.06" (27 mm) |
Depth | 0.85" (21.50 mm) |
Weight (Approximate) | 200 g | Miscellaneous |
Compatibility | Ubiquiti 802.3af Switches |
Certifications & Standards | 802.3af |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
[/custom-user-manual]
Warranty Infomartion
1 Year
