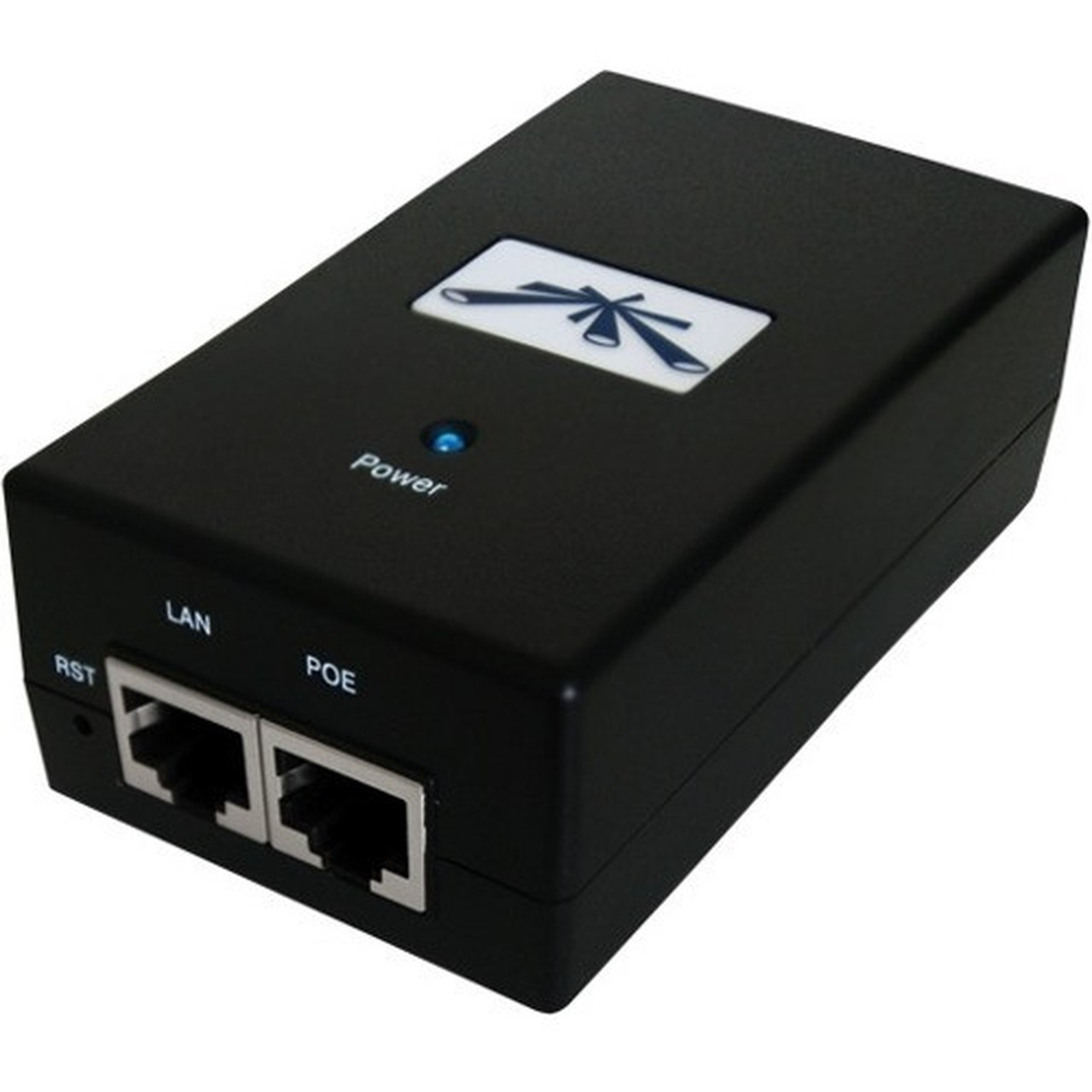

Ubiquiti POE-24-12W Power over Ethernet Injector - 120 V AC, 230 V AC Input - 24 V DC, 500 mA Output - 1 x Ethernet Input Port(s) - 1 (POE-24-12W)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
- airFiber®
- airMAX®
- EdgeMAX®
- mFi®
- UniFi® AP
- UniFi Protect / airVision®
- UniFi LED
- U Fiber
- Surge protection
- Clamping protection
- Maximum surge discharge
- Peak pulse current
- AC cable with earth ground
- IEC 60950-1:2005+A1
- UL60950-1
- EN55022:2010 (CISPR22) Class B
- EN55024:2010
- FCC Class B
- CE
Marketing Information:
Ubiquiti Networks offers Power over Ethernet (PoE) Adapters to power a variety of Ubiquiti products. The PoE Adapters are compatible with most Ubiquiti PoE devices, including:
Protection
Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:
Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter,
TOUGHCable TM , and TOUGHCable Connectors.
Protection Type: Surge Protection,Clamping Protection,Peak Pulse Current
Input Voltage: 120 V AC,230 V AC
Maximum Output Voltage: 24 V DC
Maximum Input Current: 300 mA
Maximum Output Current: 500 mA
Maximum Output Power: 12 W
Input Ports: 1 x Ethernet
Output Ports: 1 x Ethernet
Height: 1.15" (29.21 mm)
Width: 3.43" (87.12 mm)
Depth: 3.31" (84.07 mm)
Weight (Approximate): 92 g
Certifications & Standards:
Country of Origin: China
[custom-specifications]
Specifications | |
Manufacturer | Ubiquiti Inc. |
Manufacturer Part Number | POE-24-12W |
Manufacturer Website Address | http://www.ui.com |
Brand Name | Ubiquiti |
Product Model | POE-24-12W |
Product Name | POE-24-12W Power over Ethernet Injector |
Product Type | PoE Injector |
Technical Information | |
Protection Type | Surge Protection,Clamping Protection,Peak Pulse Current |
Power Description | |
Input Voltage | 120 V AC,230 V AC |
Maximum Output Voltage | 24 V DC |
Maximum Input Current | 300 mA |
Maximum Output Current | 500 mA |
Maximum Output Power | 12 W |
Interfaces/Ports | |
Input Ports | 1 x Ethernet |
Output Ports | 1 x Ethernet |
Physical Characteristics | |
Height | 1.15" (29.21 mm) |
Width | 3.43" (87.12 mm) |
Depth | 3.31" (84.07 mm) |
Weight (Approximate) | 92 g |
Miscellaneous | |
Certifications & Standards |
|
Country of Origin | China |
[/custom-specifications]
