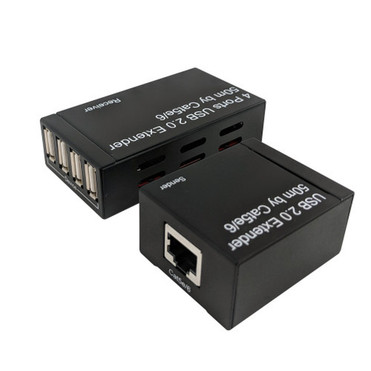

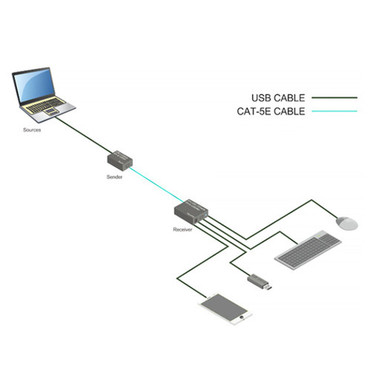

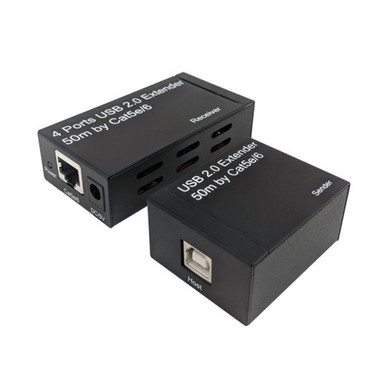

This USB extender allows you to extend four USB
devices to 50m away from the host (computer) using one Cat5e/6 cable. It can be
used to connect your USB camera, printer, webcam, keyboard, mouse or any other
USB device to your computer or DVR. The extender is plug & play
therefore no drivers are required.
Features:
- Extend up to 4 USB devices
- Compatible with USB 2.0
- Supports max transmits speed of 39 Mbps
- Integrates 10/100Mbps Fast Ethernet MAC/PHY
- Compatible 100Base-TX and 10Base-T PMD level standards
- Embedded Ethernet 802.3/3u transceiver
- Supports MDI/MDIX auto crossover function (Auto-MDIX)
- Supports major Ethernet protocols TCP/IP
- This device works with Windows and Mac
- Low power consumption
|
Physical Characteristics
|
| Distance
|
50m Max. Over a CAT5e/6 Cable
|
| Color
|
Black
|
| Housing
|
Metal Enclosure
|
Storage
temperature
|
10? to +80?
|
Storage
humidity
|
5%
to 90 % RH
|
Operating
temperature
|
0? to +50?
|
Operating Humidity
|
10% to 85 % RH
|
|
Power
|
Sender Voltage
|
5V (USB self- powered)
|
Receiver Voltage
|
5V/2A (External Power)
|
|
Connector(s)
|
| Sender
|
1 - USB Type-B Female
1 - RJ45 Female
|
| Receiver
|
4 - USB Type-A Female
1 - RJ45 Female
|
|
Performance
|
Max transmission speed
|
39Mbps
|
USB Standard
|
USB2.0, USB1.1
|
|
Environmental
|
| RoHS
|
Yes
|
|
|
| Windows
|
Yes
|
| Mac
|
Yes
|
|
Packaging Information
|
| Package Quantity
|
1
|
| Product Weight
|
1.04 lbs [0.47kg]
|
|
Contents
|
| Included in Package
|
1 - Sender
|
|
|
1 - Receiver
|
|
|
1 - DC5V 2A Power Adapter
|
|
|
1 - USB 2.0 A male to B male cable
|
|
|
1 - Manual
|
