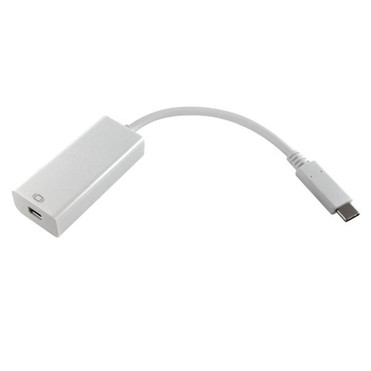

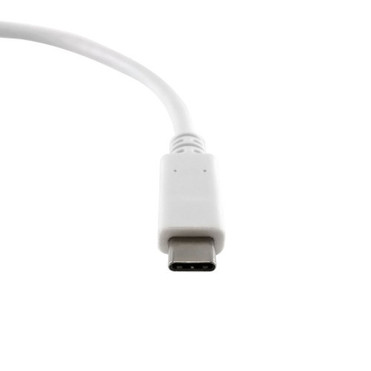

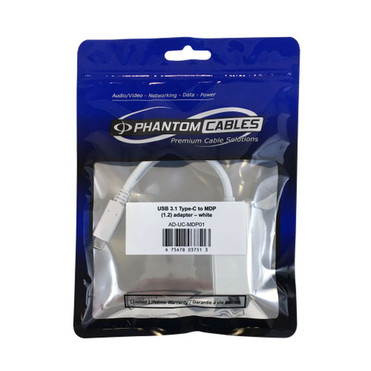

USB 3.1 Type C to Mini DisplayPort (1.2) 4K@60Hz Adapter - DP 1.2 Alt Mode - Black
Have questions?
Proud Canadian team since 2007
Consulting & Technicians services
From VoiP phone to Cluster servers
Shipped Trough UPS & Purolator
The USB Type-C to Mini DisplayPort adapter consists of a USB 3.1 Type-C male on one end and a Mini DisplayPort v1.2 female on the other end. It allows you to connect an extra display to your laptop's USB Type-C port. This adapter provides high throughput using the USB 3.1 bus and supports high definition monitors.
Physical Characteristics | |
---|---|
Cable Length | 6 inches |
Color | White |
Connector Plating | Nickel |
Size(W x L x H) | 41.5 x 37 x 14.5mm |
Operating Temperature | 0 ℃ to +45℃ |
Storage Temperature | -10℃ to +70℃ |
Connector(s) | |
Connector A | USB 3.1 Type-C Male |
Connector B | Mini Displayport v1.2 Female |
Performance | |
Resolution | 3840x2600 @ 60Hz |
Speed | Per lane data rates of 5.4 Gbps (HBR2), 2.7 Gbps (HBR) and 1.62 Gbps (RBR) |
version | Mini Displayport 1.2 and former versions |
Power Source | USB Bus Power or VCONN |
Compatibility | Compliant with USB 3.1 |
Backward Compatible with USB 3.0 and USB 2.0 | |
System Requirements | |
Operating System | Windows Compliant |
Mac Compliant | |
Environmental | |
RoHS | Yes |
Reach | Yes |
Conflict Minerals | Yes |
Packaging Information | |
Package Quantity | 1 |
Product Weight | 0.06 lbs [0.02kg] |
