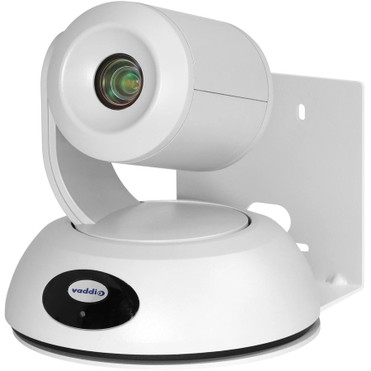

Vaddio EasyIP 8.5 Megapixel HD Network Camera - 1 - White - 1920 x 1080 - 4.4 mm (0.17") - 20x Optical - Exmor R CMOS - HDMI (999-30230-000W)

Marketing Information: The EasyIP 20 Camera brings professional AV quality performance to the EasyIP Ecosystem, an AV-over-IP solution for lecture capture, remote learning and videoconferencing in large meeting rooms, lecture halls, and houses of worship. It delivers 1080p/60 resolution feeds to EasyIP endpoints and connects to a 1 GB PoE+ switch - eliminating the need for costly USB extensions. A local HDMI output allows for easy IMAG (image magnification).

The system works on an IP-based infrastructure, sending video and control signals over the LAN using IP switching and configuration protocols. By offloading the extension and switching to a PoE switch, total cost of the system is reduced, providing a simple, more affordable alternative to traditional extension systems. The EasyIP solution eliminates the need for more expensive video switchers, controllers, extension systems and dedicated processing devices.

The EasyIP 20 Camera, sends 1080p/60 resolution feeds to the EasyIP Ecosystem for delivery to web-based streaming and conferencing solutions and connects to a 1 Gb PoE+ switch - eliminating the need for costly USB extensions.

IMPORTANT: This camera requires a PoE+ power source to operate (not included). Consider the EasyIP 20 Base Kit 999-30232-000 which includes the Luxul AMS-1208P-EasyIP Switch, EasyIP 20 Camera and EasyIP Decoder.

Designed with an 1/2.5-type Exmor R CMOS sensor, the EasyIP 20 camera delivers striking, high-definition video image quality. Cutting-edge image signal processing (ISP) results in better light-gathering capabilities, incredible contrast and sharp 1080p/60 video, even in dim lighting conditions.

Enhanced Wide Dynamic Range

The EasyIP 20 camera is equipped with enhanced wide dynamic range, which can help correct for environments with uneven lighting by making darker or over-bright areas in video more visible and detailed.

Remote Management

A web-based user interface gives the user camera control with a web browser from anywhere in the world over the IP network. Perfect for remote management, network operating centers and overall IT control.

Smooth Tri-Synchronous Motion

The EasyIP 20 camera is equipped with Vaddio's industry-leading Tri-Synchronous Motion technology allowing all three axes of the camera to move simultaneously for ultra-smooth, natural camera motion.

Flexible Video Outputs

Video outputs include simultaneous EasyIP (Network PoE+) and local HDMI video output.

More from the Manufacturer

HD Recording: Yes

Recording Formats: HD

Image Sensor Type: Exmor R CMOS

Field of View: 70.2º wide end to 4.1º tele end

Effective Camera Resolution: 8.5 Megapixel

Maximum Video Resolution: 1920 x 1080

Minimum Focal Length: 4.4 mm (0.17")

Maximum Focal Length: 88.4 mm (3.48")

Minimum Aperture: f/2

Maximum Aperture: f/3.8

Optical Zoom: 20x

Shortest Shutter Speed: 1/10000 Second

Longest Shutter Speed: 1/1 Second

Connectivity Technology: Wired

Remote Management: Yes

HDMI: Yes

Network (RJ-45): Yes

Color Family: White

Product Color: White

Height: 6.94" (176.28 mm)

Width: 7.05" (179.07 mm)

Depth: 6.75" (171.45 mm)

Weight (Approximate): 4.85 lb (2199.92 g)

Minimum Operating Temperature: 32°F (0°C)

Maximum Operating Temperature: 104°F (40°C)

Maximum Operating Humidity: 80%

Features: PTZ,Noise Reduction

Package Contents:

• EasyIP 20 Camera
• 1 x Quick-Start Guide
• 1 x Thin Profile Wall Mount (white) with mounting hardware and installation manual
• 1 x Vaddio IR Remote Commander
• 10 ft (3.05m) cat-5e snagless cable, black

TAA Compliant: Yes

Limited Warranty: 2 Year
