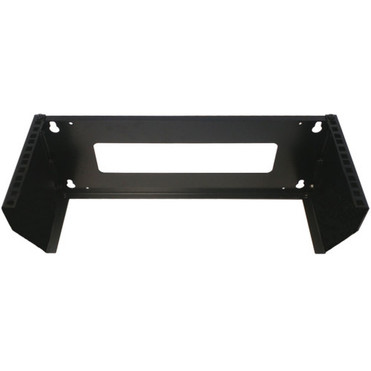

This vertical wall mount rack is 4U in depth. It is used for mounting 19" wide networking equipment vertically. Works well in a small office or home where space is limited.
Physical Characteristics |
---|
Color | Black |
Finish | Powder Painted |
Material | 2.0mmSPCC Cold Rolled Steel
|
Depth in units | 4U |
Height in inches | 7.8 inches [198mm]
|
Rail Mounting Style | SquareHole Punched Rails
|
Mounting Width | 19 Inches
|
Overall Dimensions | 7.8Hx 19.2W x 7.7D Inches
|
Rear Wire Access Hole | 1 (15.6 x 3 inches)
|
Load Capacity | 66lbs(30kg)
|
Wall Mounting Hardware | Not Included |
Equipment Mounting Hardware | Included |
Approvals |
---|
ANSI/EIA | Yes |
RS-310-D | Yes |
IEC60297-2 | Yes |
DIN41494 | Yes |
PART1 | Yes |
PART7 | Yes |
Environmental |
---|
RoHS | Yes |
Reach | Yes |
Packaging Information |
---|
Package Quantity | 1 |
Product Weight | 7 lbs [3.18kg] |
Content |
---|
Includedin Package | 1 -Vertical Wall Mount Rack |
| 10 - M6 Black Screws with Washers and Clip Nuts
|
| 10 - M6 Clip Nuts
|
