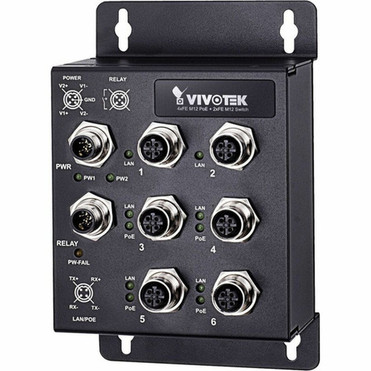

Vivotek Industrial EN50155 4xFE M12 PoE + 2xFE M12 Switch - 6 Ports - Fast Ethernet - 10Base-T, 100Base-TX - 140 W Power Consumption - (AW-IHT-0602)
Write a Review
Vivotek
Vivotek Industrial EN50155 4xFE M12 PoE + 2xFE M12 Switch - 6 Ports - Fast Ethernet - 10Base-T, 100Base-TX - 140 W Power Consumption - (AW-IHT-0602)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- Industrial EN50155 4xFE M12 PoE + 2xFE M12 Switch
- QIG
Features: IP40
Total Number of Network Ports: 6
Uplink Port: Yes
Port/Expansion Slot Details: 6 x M12 4-Pole D-Coded PoE Female Port,2 x M12 D-Coded Port
Media Type Supported: Twisted Pair
Ethernet Technology: Fast Ethernet
Network Technology: 10Base-T,100Base-TX
Maximum Data Transfer Rate: 12.50 MB/s
Networking Standards: IEEE 802.3af,IEEE 802.3at,IEEE 802.3,IEEE 802.3u,IEEE 802.3x
Manageable: No
PoE (RJ-45) Port: Yes
PoE Budget: 120 W
Input Voltage: 56 V DC
Power Source: DC
Power Consumption: 140 W
Product Material: Metal
Form Factor: Standalone,Wall Mountable
Height: 2.21" (56.20 mm)
Width: 6.42" (163 mm)
Length: 3.94" (100 mm)
Weight (Approximate): 1.87 lb (850 g)
Package Contents:
Limited Warranty: 2 Year
- Cascade to other network devices through the uplink port to expand your local area network
- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 6 ports
- The unit is standalone and you can place it anywhere on a flat surface
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Fast Ethernet technology gives ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
[custom-specifications]
| Specifications | |
| Manufacturer | Vivotek, Inc |
| Manufacturer Part Number | AW-IHT-0602 |
| Manufacturer Website Address | http://www.vivotek.com |
| Brand Name | Vivotek |
| Product Model | AW-IHT-0602 |
| Product Name | Industrial EN50155 4xFE M12 PoE + 2xFE M12 Switch |
| Product Type | Ethernet Switch |
| Technical Information | |
| Features | IP40 |
| Interfaces/Ports | |
| Total Number of Network Ports | 6 |
| Uplink Port | Yes |
| Port/Expansion Slot Details | 6 x M12 4-Pole D-Coded PoE Female Port,2 x M12 D-Coded Port |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10Base-T,100Base-TX |
| Maximum Data Transfer Rate | 12.50 MB/s |
| Network & Communication | |
| Networking Standards | IEEE 802.3af,IEEE 802.3at,IEEE 802.3,IEEE 802.3u,IEEE 802.3x |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 120 W |
| Input Voltage | 56 V DC |
| Power Source | DC |
| Power Consumption | 140 W |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | Standalone,Wall Mountable |
| Height | 2.21" (56.20 mm) |
| Width | 6.42" (163 mm) |
| Length | 3.94" (100 mm) |
| Weight (Approximate) | 1.87 lb (850 g) |
| Miscellaneous | |
| Package Contents |
|
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Additional-pdf2
[/custom-user-manual]
Warranty Information
2 Year
