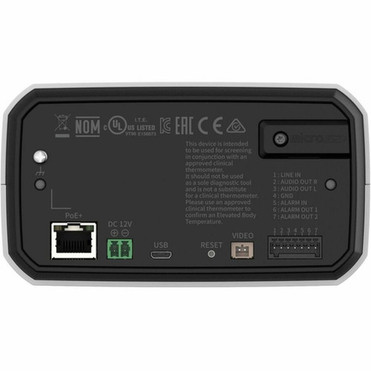

Wisenet TNM-C3622TDR 2 Megapixel Indoor Full HD Network Camera - Color - Compact - White - H.265, H.264, MJPEG, H.265M, H.265H, - x - (TNM-C3622TDR)
Write a Review
Wisenet
Wisenet TNM-C3622TDR 2 Megapixel Indoor Full HD Network Camera - Color - Compact - White - H.265, H.264, MJPEG, H.265M, H.265H, - x - (TNM-C3622TDR)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
HD Recording: Yes
Recording Formats: Full HD
Camera Iris: Fixed
AI-powered: Yes
Languages Support: English,Korean,Chinese,French,Italian,Spanish,German,Japanese,Russian,Portuguese,Czech,Polish,Turkish,Dutch,Hungarian,Greek
Image Sensor Type: CMOS
Image Sensor Size: 1/2.8"
Thermal Image Sensor Type: Uncooled Microbolometer
Color Supported: Color
Field of View: H: 87.6, V: 46.4°, D: 104
Effective Camera Resolution: 2 Megapixel
Video Formats: H.265,H.264,MJPEG,H.265M,H.265H,H.265B,H.264M,H.264B,H.264H
Maximum Video Resolution: 1920 x 1080
Thermal Video Resolution: 1280 x 960
Maximum Frame Rate: 30 fps
Analog Video Signal Format: CVBS
Audio Support: Yes
Lens Type: Fixed
Maximum Focal Length: 4 mm (0.16")
Maximum Focal Length (Lens 2): 0.19" (4.70 mm)
Lens Included: Yes
Maximum Aperture: f/1.6
Maximum Thermal Focal Length: 0.19" (4.70 mm)
Shortest Shutter Speed: 1/12000 Second
Longest Shutter Speed: 2 Second
Remote Management: Yes
Ethernet Technology: Fast Ethernet
Protocols: Unicast,Multicast,IPv4,IPv6,TCP/IP,UDP/IP,RTP/UDP,RTP/TCP,RTCP,RTSP,NTP,HTTP,HTTPS,SSL/TLS,DHCP,FTP,SMTP,ICMP,IGMP,SNMPv1/v2c/v3 (MIB2),ARP,DNS,DDNS,QoS,UPnP,Bonjour,LLDP,SRTP,MQTT,ONVIF
Storage Type: Memory Card
Internal Memory: 4.50 GB
USB: Yes
Network (RJ-45): Yes
Maximum Power Consumption: 17 W
Input Voltage: 12 V DC
Power Source Type: PoE+,DC
Color Family: White
Product Color: White
Product Material: Aluminum
Form Factor: Compact
Height: 2.95" (75 mm)
Width: 5.31" (135 mm)
Depth: 7.42" (188.50 mm)
Weight (Approximate): 3.75 lb (1700 g)
Minimum Operating Temperature: 14°F (-10°C)
Maximum Operating Temperature: 131°F (55°C)
Minimum Storage Temperature: -22°F (-30°C)
Maximum Storage Temperature: 140°F (60°C)
Maximum Operating Humidity: 95%
Maximum Storage Humidity: 95%
Features: Back Light Compensation (BLC),Wide Dynamic Range,Motion Detection,Digital Image Stabilization,Digital Noise Reduction,Privacy Masking,Gain Control,White Balance,Mirror,Anti-flicker
Indoor/Outdoor: Indoor
TAA Compliant: Yes
Limited Warranty: 5 Year
- Bi-spectrum monitoring with 2MP visible & QVGA thermal
- AI based Object classification with visible channel only (person)
- Remote Temperature Monitoring within -20 ~ 130°C range
- 6 of quadrangle ROI areas for temperature monitoring
- Compact and Light-weight for Indoor purpose
[custom-specifications]
| Specifications | |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | TNMC3622TDR |
| Manufacturer Website Address | http://www.hanwha.com |
| Brand Name | Wisenet |
| Product Series | T |
| Product Model | TNM-C3622TDR |
| Product Name | TNM-C3622TDR Bi-Spectrum AI Thermal Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Camera Iris | Fixed |
| AI-powered | Yes |
| Languages Support | English,Korean,Chinese,French,Italian,Spanish,German,Japanese,Russian,Portuguese,Czech,Polish,Turkish,Dutch,Hungarian,Greek |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Image Sensor Size | 1/2.8" |
| Thermal Image Sensor Type | Uncooled Microbolometer |
| Color Supported | Color |
| Field of View | H: 87.6, V: 46.4°, D: 104 |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | H.265,H.264,MJPEG,H.265M,H.265H,H.265B,H.264M,H.264B,H.264H |
| Maximum Video Resolution | 1920 x 1080 |
| Thermal Video Resolution | 1280 x 960 |
| Maximum Frame Rate | 30 fps |
| Analog Video Signal Format | CVBS |
| Audio | |
| Audio Support | Yes |
| Lens | |
| Lens Type | Fixed |
| Maximum Focal Length | 4 mm (0.16") |
| Maximum Focal Length (Lens 2) | 0.19" (4.70 mm) |
| Lens Included | Yes |
| Maximum Aperture | f/1.6 |
| Maximum Thermal Focal Length | 0.19" (4.70 mm) |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 2 Second |
| Network & Communication | |
| Remote Management | Yes |
| Ethernet Technology | Fast Ethernet |
| Protocols | Unicast,Multicast,IPv4,IPv6,TCP/IP,UDP/IP,RTP/UDP,RTP/TCP,RTCP,RTSP,NTP,HTTP,HTTPS,SSL/TLS,DHCP,FTP,SMTP,ICMP,IGMP,SNMPv1/v2c/v3 (MIB2),ARP,DNS,DDNS,QoS,UPnP,Bonjour,LLDP,SRTP,MQTT,ONVIF |
| Storage | |
| Storage Type | Memory Card |
| Internal Memory | 4.50 GB |
| Interfaces/Ports | |
| USB | Yes |
| Network (RJ-45) | Yes |
| Power Description | |
| Maximum Power Consumption | 17 W |
| Input Voltage | 12 V DC |
| Power Source Type | PoE+,DC |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Product Material | Aluminum |
| Form Factor | Compact |
| Height | 2.95" (75 mm) |
| Width | 5.31" (135 mm) |
| Depth | 7.42" (188.50 mm) |
| Weight (Approximate) | 3.75 lb (1700 g) |
| Environmental Conditions | |
| Minimum Operating Temperature | 14°F (-10°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Minimum Storage Temperature | -22°F (-30°C) |
| Maximum Storage Temperature | 140°F (60°C) |
| Maximum Operating Humidity | 95% |
| Maximum Storage Humidity | 95% |
| Miscellaneous | |
| Features | Back Light Compensation (BLC),Wide Dynamic Range,Motion Detection,Digital Image Stabilization,Digital Noise Reduction,Privacy Masking,Gain Control,White Balance,Mirror,Anti-flicker |
| Indoor/Outdoor | Indoor |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 5 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
Additional-pdf1
[/custom-user-manual]
Warranty Information
5 Year
