WPS1500 Omni-Directional Barcode Scanner - Cable Connectivity - 11.80" (299.72 mm) Scan Distance - 1D, 2D - LED - Omni-directional - - (633809008351)
Write a Review
Wasp
WPS1500 Omni-Directional Barcode Scanner - Cable Connectivity - 11.80" (299.72 mm) Scan Distance - 1D, 2D - LED - Omni-directional - - (633809008351)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- Auto discriminates all standard 1D codes including GS1 DataBar linear codes. Aztec Code; Data Matrix; MaxiCode; QR Code. Australian Post; British Post; Canadian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese Post; Postnet; Royal Mail Code; (RM4SCC); Swedish Post; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MicroPDF417; PDF417; optional support for Digimarc Barcodes/GS1 DW Code

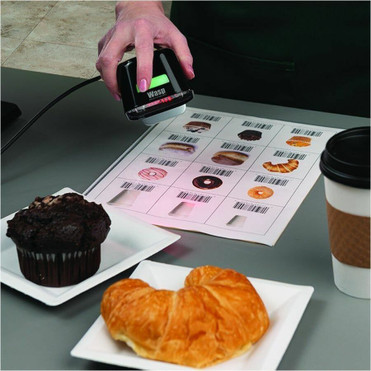

- Wasp WPS1500 Omni-Directional Barcode Scanner with integrated stand
- USB cable
- Scanner programming guide
Connectivity Technology: Cable
Scanning Capability: 1D,2D
Barcode Symbology Supported:
Symbologies:
Light Source: LED
Scan Pattern: Omni-directional
Scanning Distance: 11.80" (299.72 mm)
Cable Type Included: USB
Stand Included: Yes
Reading Angle (Skew): 75°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 360°
Image Formats: BMP,JPEG
Maximum Ambient Light: 86100 lux
Drop Specification:
4.0 ft. (1.2 m)
Minimum Print Contrast: 25%
Minimum Element Resolution (Code 39): 5 mil (0.13 mm)
Maximum Element Resolution (Code 39): 20 mil (0.51 mm)
Minimum Element Resolution (DataMatrix): 13 mil (0.33 mm)
Maximum Element Resolution (DataMatrix): 24 mil (0.61 mm)
Minimum Element Resolution (PDF417): 6.50 mil (0.17 mm)
Maximum Element Resolution (PDF417): 16 mil (0.41 mm)
Image Sensor Resolution: 1280 x 800
Features: Beep,Notification LED
Host Interface: USB,IBM 46XX,Serial
Operating Temperature: 32°F (0°C) to 104°F (40°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 5% to 95%
Form Factor: Hands-free
Rugged: Yes
Color Family: Dual Color
Product Color: Black,White
Durability: Drop Resistant,Dust Resistant,Water Resistant
Package Contents:
Ingress Protection (IP) Rating: IP52
Application/Usage: Retail,Warehouse,Healthcare,Commercial Service,Loyalty Program,Ticketing,Self-checkout,Assembly Line,Packing,Laboratory,Pharmacy
Platform Supported: Smartphone,Tablet,PC
Environmental Compliance: China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS)
Limited Warranty: 2 Year
- High-performance, omnidirectional scan pattern for increased productivity
- Ideal for retail point-of-pale (POS), warehouse application, healthcare and commercial services
- Scans popular 1D and 2D barcodes on everything from printed product labels to mobile coupons, loyalty cards, tickets and boarding passes
- Omnidirectional code reading capability
- 1MP optics for excellent performance when reading from mobile devices
- Green spot technology for good-read feedback
[custom-specifications]
| Specifications | |
| Manufacturer | Wasp Barcode Technologies |
| Manufacturer Part Number | 633809008351 |
| Manufacturer Website Address | http://www.waspbarcode.com |
| Brand Name | Wasp |
| Product Model | WPS1500 |
| Product Name | WPS1500 Omni-Directional Barcode Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | Symbologies:
|
| Light Source | LED |
| Scan Pattern | Omni-directional |
| Scanning Distance | 11.80" (299.72 mm) |
| Cable Type Included | USB |
| Stand Included | Yes |
| Reading Angle (Skew) | 75° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 360° |
| Image Formats | BMP,JPEG |
| Maximum Ambient Light | 86100 lux |
| Drop Specification | 4.0 ft. (1.2 m) |
| Minimum Print Contrast | 25% |
| Minimum Element Resolution (Code 39) | 5 mil (0.13 mm) |
| Maximum Element Resolution (Code 39) | 20 mil (0.51 mm) |
| Minimum Element Resolution (DataMatrix) | 13 mil (0.33 mm) |
| Maximum Element Resolution (DataMatrix) | 24 mil (0.61 mm) |
| Minimum Element Resolution (PDF417) | 6.50 mil (0.17 mm) |
| Maximum Element Resolution (PDF417) | 16 mil (0.41 mm) |
| Image Sensor Resolution | 1280 x 800 |
| Features | Beep,Notification LED |
| Interfaces/Ports | |
| Host Interface | USB,IBM 46XX,Serial |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 104°F (40°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 5% to 95% |
| Physical Characteristics | |
| Form Factor | Hands-free |
| Rugged | Yes |
| Color Family | Dual Color |
| Product Color | Black,White |
| Durability | Drop Resistant,Dust Resistant,Water Resistant |
| Miscellaneous | |
| Package Contents |
|
| Ingress Protection (IP) Rating | IP52 |
| Application/Usage | Retail,Warehouse,Healthcare,Commercial Service,Loyalty Program,Ticketing,Self-checkout,Assembly Line,Packing,Laboratory,Pharmacy |
| Platform Supported | Smartphone,Tablet,PC |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS),Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
