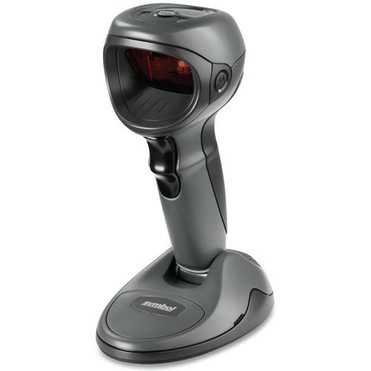

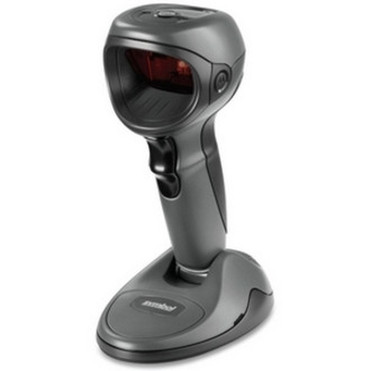

Zebra DS9808SR Bar Code Reader - 2D Omni-directional LED Scanner - 18" (457.20 mm) Scan Distance - Black (DS9808-SR00007CNWR)

Marketing Information:

Achieve a new level of productivity and throughput at the checkout stand with the Motorola's DS9808SR Bar Code Reader. The groundbreaking DS9808SR Bar Code Reader is designed inside and outside to bring a new level of versatility,functionality and performance to the checkout stand. Outside, the DS9808SR Bar Code Reader offers an extraordinary one-of-a-kind hybrid form factor by marrying a solid base with our advanced handheld ergonomics, creating a scanner that is truly designed to deliver superior comfort and ease of use in both handheld and hands-free scanning modes.

Connectivity Technology: Cable

Scanning Capability: 2D

Barcode Symbology Supported:

1-D / LINEAR CODES:

• UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/ JAN-8/JAN-13 plus supplementals)
• ISBN (Bookland)
• ISSN
• Coupon Code
• Code 39 (Standard, Full ASCII, Trioptic)
• Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated)
• Code 93
• Codabar/NW7
• Code 11 (Standard, Matrix 2 of 5)
• MSI Plessey
• I 2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5, IATA, Chinese 2 of 5)
• GS1 DataBar (Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse)
• Base 32 (Italian Pharmacode)

PDF417 (and variants):

• PDF417 (Standard, Macro)
• MicroPDF417 (Standard, Macro)
• Composite Codes (CC-A, CC-B, CC-C)

2-D:

• TLC-39
• Aztec (Standard, Inverse)
• MaxiCode, DataMatrix/ECC 200 (Standard, Inverse)
• QR Code (Standard, Inverse, Micro)

Postal:

• U.S. Postnet and Planet
• U.K. Post
• Japan Post
• Australian Post
• Netherlands KIX Code
• Royal Mail 4 State Customer
• UPU FICS 4 State Postal
• USPS 4CB

Light Source: LED

Image Sensor Type: Imager

Scan Pattern: Omni-directional

Scanning Distance: 18" (457.20 mm)

Host Interface: Multi-interface

Form Factor: Handheld

Product Color: Twilight Black

Height: 7.99" (203 mm)

Width: 5.39" (137 mm)

Depth: 3.39" (86 mm)

Weight (Approximate): 340 g

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
