Marketing Information: The world's smallest enterprise wearable scanner
Hands-free mobility can give your workflows an instant productivity boost, but you need a solution that your workers want to wear - and fits your budget. Introducing the RS2100 Wearable Scanner - the smallest enterprise wearable scanner on the market. An innovative back of hand design offers new levels of worker comfort and dexterity. The unique mount leaves the palm completely unobstructed, providing complete freedom to handle items. The very low profile enables easy picking in tight spaces. There's nothing complicated about this wearable scanner: it's simple to purchase, deploy, wear and manage. An optional Device Tracker license makes it easy to find a missing RS2100 scanner. Get the edge you need to compete in today's economy with the RS2100 Wearable Scanner - a new level of wearable comfort, productivity and simplicity.
A New Standard in Worker Comfort and Productivity
Smallest enterprise wearable scanner in the market
When your workers are scanning hundreds or thousands of items per shift, user comfort is critical. The RS2100 is practically weightless at just a little over one ounce (31 g), minimizing fatigue over long shifts. At only 0.57 in./14.6 mm high, the RS2100 features the lowest profile on the market for effortless picking - even in the tightest spaces.

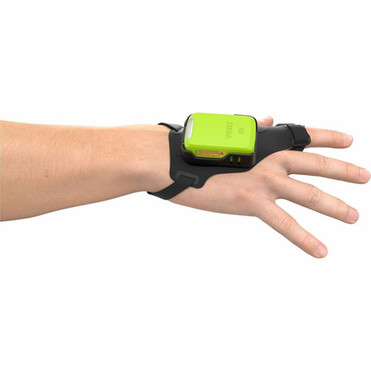

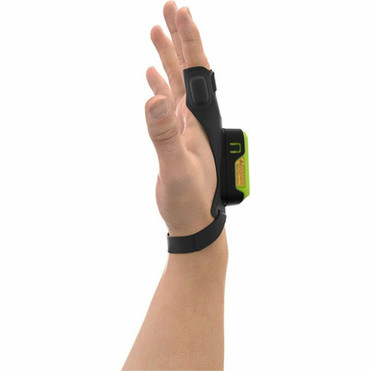

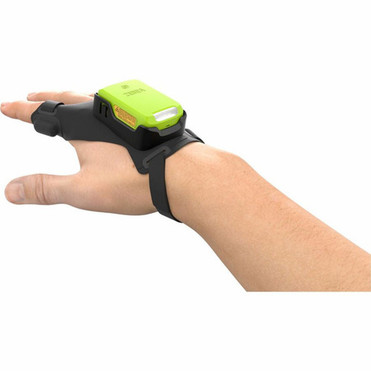

Best-in-class "bare palm" gripping capability
The innovative back of hand mount leaves the entire palm free - unlike other back of hand scanners that have a cumbersome strap across the palm or cover the palm completely. With fully bare palms, workers get a better and more secure grip on the items they're handling - boosting productivity and reducing breakage.
Durable for all-day, every-day use
Drop it on the floor. Splash water on it. Use it in a dusty backroom or out on the receiving dock. With IP54 sealing and a 6 ft./1.8 m to concrete drop specification, the RS2100 is engineered for durability.
Flexible notifications for easy scan confirmation
Workers instantly know when a scan was successful with a choice of notifications: LED lights that are visible in the line of sight, an audible beeper and/or haptic vibration.
Ideal for packing stations
Zebra's Bluetooth Adapter allows the Bluetooth-enabled RS2100 to connect via USB to a PC with a large screen that makes it easy for packers to view needed data. Up to seven (7) RS2100 scanners can be paired simultaneously to a non-mobile host, eliminating the need to purchase a mobile computer for each worker.
Compatible with Zebra mobile computers and consumer devices
The RS2100 works with Zebra's handheld and wearable mobile computers, as well as Apple and Android tablets and smartphones - and even PCs. The result? No matter what types of devices you have deployed today, or what types of devices you plan to purchase tomorrow, the RS2100 provides a cost-effective path to add hands-free scanning to your existing workflows.
Enterprise-level service at the right price
Zebra OneCare Essential and Select help eliminate unexpected repair costs and keeps RS2100 scanners up and running...at a fraction of the cost of a single uncovered repair. You get unmatched, direct-from-Zebra support including: coverage for accidental damage and normal wear and tear, live-agent technical support and numerous options that allow you to tailor your support plan to meet all of your service needs.
Connectivity Technology: WirelessScanning Capability: Barcode Symbology Supported: 1D:
- Code 39
- Code 128
- Code 93
- Codebar/NW7
- Code 11
- MSI
- UPC/EAN
- I 2 of 5
- Korean 3 of 5
- GSI DataBar
- Base 32 (Italian Pharma)
2D:
- PDF417
- Micro PDF417
- Composite Codes
- TLC-39,
- Aztec
- DataMatrix
- MaxiCode
- QR Code
- Micro QR
- Chinese Sensible (Han Xin)
- Postal Codes
Supported OCR Symbologies :

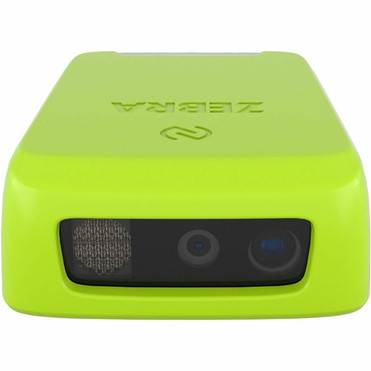

Scan Engine Model: SE4770Light Source: LaserImage Sensor Type: ImagerScan Pattern: AreaScanner Range: Standard RangeScanning Distance: 36.10" (917 mm)Field of View (Horizontal): 48°Field of View (Vertical): 30°Reading Angle (Skew): 60°Reading Angle (Pitch): 60°Reading Angle (Roll): 360°Maximum Ambient Light: 107639 luxDrop Specification: - Multiple 6 ft./1.8 m drops to concrete over the operating temperature range
Minimum Element Resolution (Code 39): 3 mil (0.08 mm)Maximum Element Resolution (Code 39): 20 mil (0.51 mm)Minimum Element Resolution (DataMatrix): 10 mil (0.25 mm)Minimum Element Resolution (PDF417): 5 mil (0.13 mm)Maximum Element Resolution (PDF417): 6.67 mil (0.17 mm)Image Sensor Resolution: 1280 x 800Illumination Type: LEDIllumination Color: RedAir Electrostatic Discharge (+/-): 15kV DCContact Electrostatic Discharge (+/-): 8kV DCFeatures: - Beep
- Notification LED
- Vibration
- Ergonomic Design
Bluetooth: YesBattery Chemistry: Lithium Ion (Li-Ion)Battery Capacity: 480 mAhOperating Temperature: 32°F (0°C) to 122°F (50°C)Storage Temperature: -40°F (-40°C) to 140°F (60°C)Humidity (Non-condensing): 5% to 95%Form Factor: WearableRugged: YesDurability: - Water Resistant
- Dust Resistant
- Spill Resistant
Height: 0.57" (14.48 mm)Width: 1.40" (35.56 mm)Length: 2.05" (52.07 mm)Weight (Approximate): 31 gIngress Protection (IP) Rating: IP54Application/Usage: - Transportation
- Logistics
- Sorting
- Inventory
- Manufacturing
- Ticketing
- Hospitality
- Picking
- Delivery
- Retail
- Packing
- Warehouse
Platform Supported:
