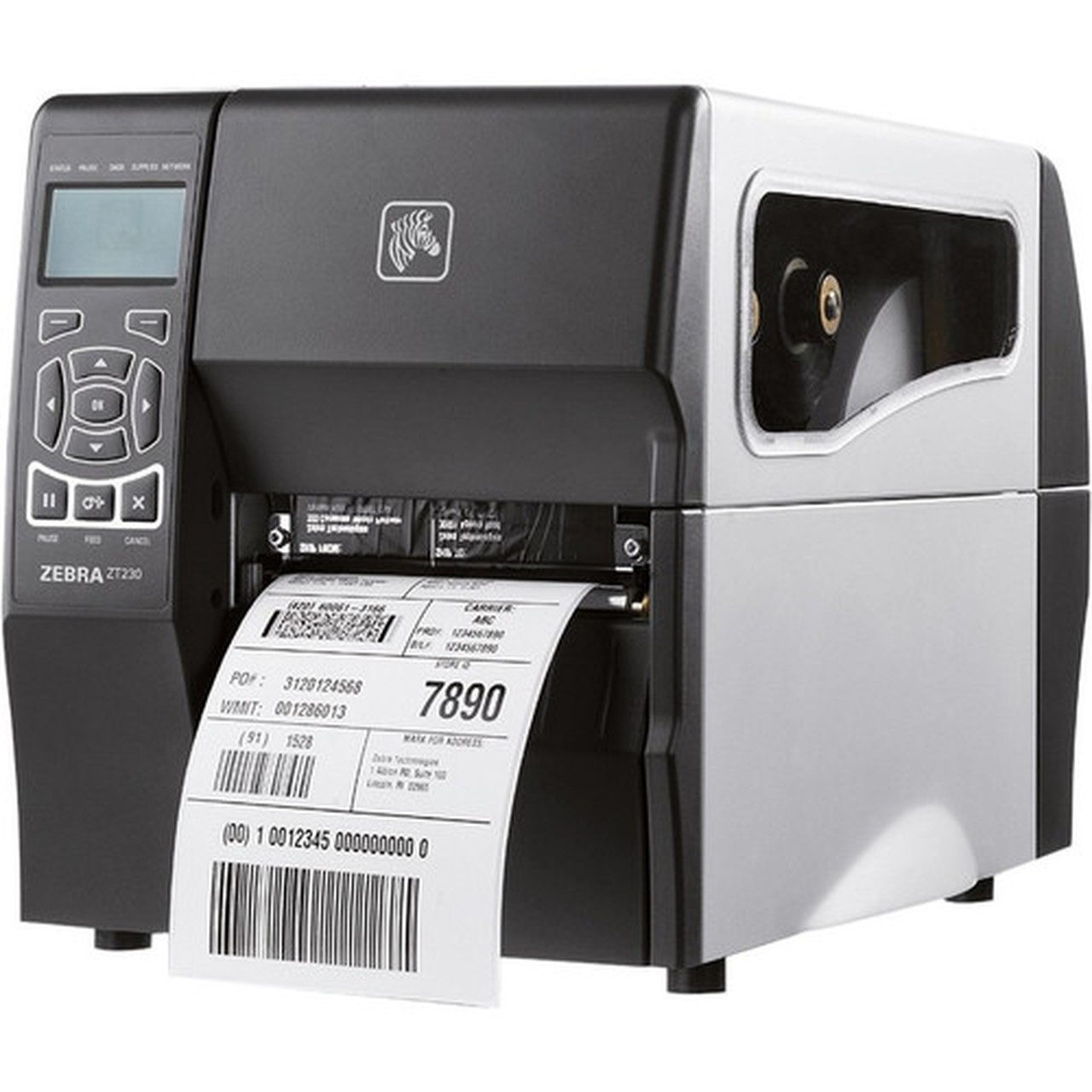

Zebra ZT230 Industrial Direct Thermal Printer - Monochrome - 4.09" LCD - (ZT23043-D01200FZ)

Marketing Information:

Zebra incorporated extensive customer feedback, as well as the legacy of our industry leading Stripe and S4M printers, to create the new ZT200 Series family of printers with elegant space saving design, effortless setup, intuitive user operation, and ease of service and maintenance.

Recommended Use: Label Print

Print Color Capability: Monochrome

Maximum Mono Print Speed: 152.40 mm/s

Maximum Print Resolution (dpi): 300

Maximum Print Width: 4.09"

Barcode Symbology Supported: Code 11,Code 39,Code 93,Code 128-A,Code 128-B,Code 128-C,UCC Case Codes,ISBT-128,UPC-A,UPC-E,EAN-13,EAN-8,EAN With 2 or 5 Digit Extension,UPC 2 or 5 Digit Extension,Plessey,POSTNET,Standard 2 of 5,Industrial 2 of 5,Interleaved 2 of 5,LOGMARS,MSI,Codabar,Planet Code,Codablock,PDF-417,Code 49,Data Matrix,Maxi Code,QR Code,TLC 39,Micro PDF,RSS-14,Aztec Code,Micro PDF-417

Application/Usage: Industrial

Features: Element Energy Equalizer,Bi-color LED,Clear Bi-fold Media Side Door,Tear-off

Standard Memory: 128 MB

Flash Memory: 128 MB

Serial Port: Yes

USB: Yes

Ethernet: Yes

Ethernet Technology: Fast Ethernet

Display Screen: Yes

Display Screen Type: LCD

Media Type: Black Mark,Continuous Label,Die-cut Label,Notch

Media Sensor: Transmissive Media Sensor,Reflective Media Sensor

Media Thickness: 10 mil

Maximum Roll Diameter: 8"

Maximum Label Width: 4.50" (114.30 mm)

Maximum Label Length: 39" (990.60 mm)

Language Emulation: ZPL

Power Source: AC Supply

Input Voltage: 110 V AC,220 V AC

Height: 10.90" (276.86 mm)

Width: 9.50" (241.30 mm)

Depth: 17" (431.80 mm)

Weight (Approximate): 9.07 kg

Package Contents:

• ZT230 Industrial Printer
• Power Cord with US Plug

Platform Supported: PC

Certifications & Standards:

• IEC 60950
• EN 55022 Class B
• EN55024
• EN 61000-3-2
• EN 61000-3-3
• UL
• CE Marking
• FCC-B
• ICES-003
• VCCI
• C-Tick
• NOM
• IRAM
• CCC
• GOST-R

Energy Star: Yes

Environmentally Friendly: Yes

Country of Origin: China

Limited Warranty: 1 Year
