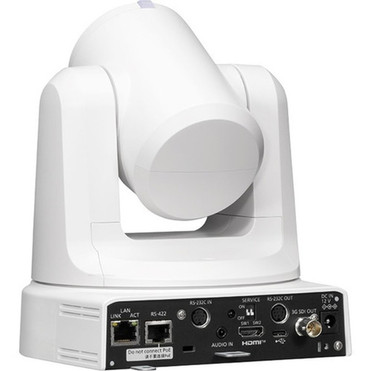

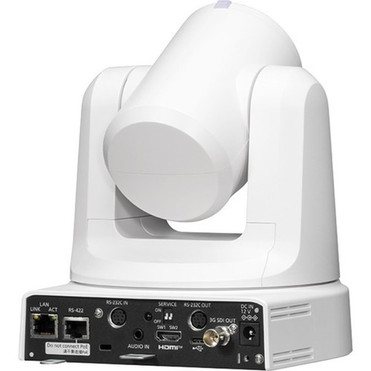

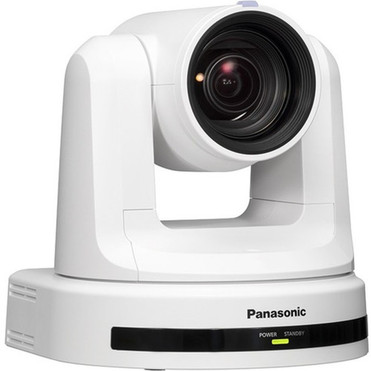

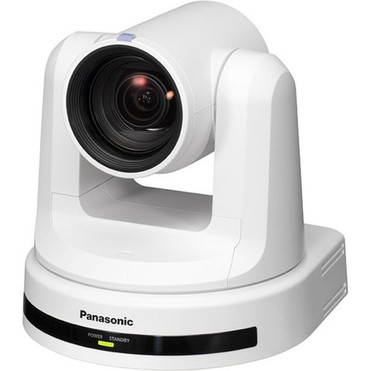

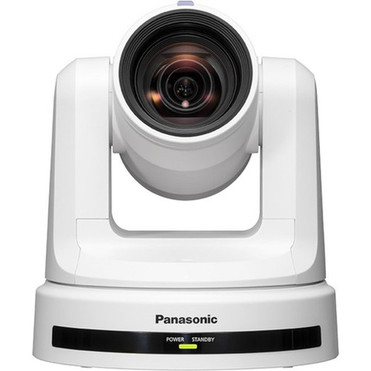

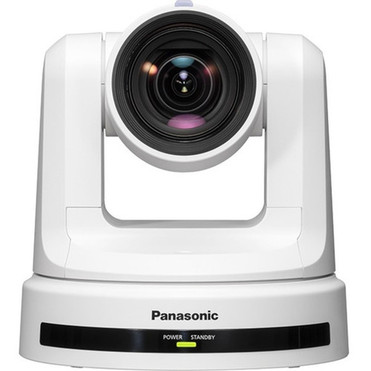

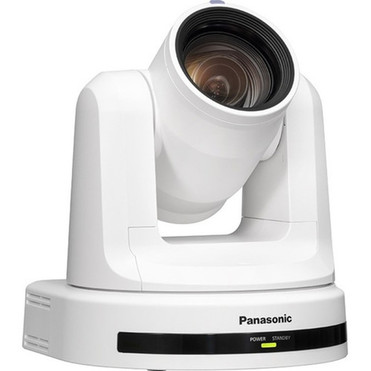

Panasonic AW-HE20 Full HD Network Camera - Color - White - H.264, H.265, Motion JPEG - 1920 x 1080 - 3.9 mm- 46.8 mm Varifocal Lens - (AWHE20WP)
Write a Review
Panasonic
Panasonic AW-HE20 Full HD Network Camera - Color - White - H.264, H.265, Motion JPEG - 1920 x 1080 - 3.9 mm- 46.8 mm Varifocal Lens - (AWHE20WP)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- High-Quality Video Streaming for More Comfortable Online Communication
- Excellent System Flexiblility to Achieve Smart Wiring and Smooth Operation
- Compact Size and Excellent Functionality that do not Disturb the existing Video Streaming Environment
- New camera web interface with expanded control and dark mode
Marketing Information:
PTZ cameras play an increasingly important role in teleworking such as online meetings and online classes. The AW-HE20 offers high image quality, wide shooting angle and high-magnification zoom to provide more comfortable communication through high-quality video images and stable transmission. The AW-HE20 is compatible with a wide range of systems such as SDI, HDMI, USB and IP, thus allowing flexible camera setup and operation. The AW-HE20 is a high-quality entry model. The compact unit can be installed in a small place without getting in the way.
Key features
HD Recording: Yes
Recording Formats: Full HD
Image Sensor Type: MOS
Color Supported: Color
Field of View: Horizontal angle of view: 71° (wide) to 6° (tele)Vertical angle of view: 43° (wide) to 3° (tele)Diagonal angle of view: 79° (wide) to 7° (tele)
Video Formats: H.264,H.265,Motion JPEG
Maximum Video Resolution: 1920 x 1080
Maximum Frame Rate: 60 fps
Analog Video Signal Format: 3G-SDI
Lens Type: Varifocal
Minimum Focal Length: 3.9 mm
Maximum Focal Length: 46.8 mm
Lens Included: Yes
Minimum Aperture: f/2.8
Maximum Aperture: f/1.6
Optical Zoom: 12x
Connectivity Technology: Wired
Remote Management: Yes
HDMI: Yes
Network (RJ-45): Yes
Input Voltage: 12 V DC
Power Source Type: DC,PoE
Color Family: White
Product Color: White
Mount Type: Wall Mount
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Maximum Operating Humidity: 90%
Features: PTZ,Automatic White Balance
- For remote surveillance needs, this network camera is best suited
- Up to 1920 x 1080 resolution for surveillance in real-time
- Features MOS sensor that is used to produce smooth and sharp images
[custom-specifications]
| Specifications | |
| Manufacturer | Panasonic |
| Manufacturer Part Number | AWHE20WP |
| Manufacturer Website Address | http://www.panasonic.com |
| Brand Name | Panasonic |
| Product Model | AW-HE20 |
| Product Name | AW-HE20 Full HD Zoom Certified PTZ Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Display & Graphics | |
| Image Sensor Type | MOS |
| Color Supported | Color |
| Field of View | Horizontal angle of view: 71° (wide) to 6° (tele)Vertical angle of view: 43° (wide) to 3° (tele)Diagonal angle of view: 79° (wide) to 7° (tele) |
| Video | |
| Video Formats | H.264,H.265,Motion JPEG |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 60 fps |
| Analog Video Signal Format | 3G-SDI |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 3.9 mm |
| Maximum Focal Length | 46.8 mm |
| Lens Included | Yes |
| Minimum Aperture | f/2.8 |
| Maximum Aperture | f/1.6 |
| Optical Zoom | 12x |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Interfaces/Ports | |
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type | DC,PoE |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Wall Mount |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | PTZ,Automatic White Balance |
[/custom-specifications]
[custom-options]
| Product | Panasonic Infrared Wireless Remote Control - For Security Camera - Infrared - 32.81 ft (10000 mm) Operating Distance |
| SKU | AW-RM50AG |
| Sale Price | $139.21 |
[/custom-options]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
