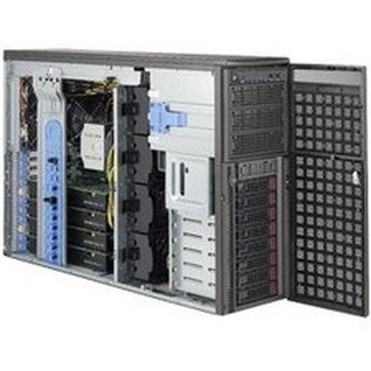

Supermicro SuperServer 7049GP-TRT Server Barebone System - 4U Tower - Socket P LGA-3647 - 2 x Processor Support - Intel C621 Chip - 2 (SYS-7049GP-TRT)
Write a Review
Supermicro
Supermicro SuperServer 7049GP-TRT Server Barebone System - 4U Tower - Socket P LGA-3647 - 2 x Processor Support - Intel C621 Chip - 2 (SYS-7049GP-TRT)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- SuperServer 7049GP-TRT (Black)
- 1 x Super X11DPG-QT Motherboard
- 1 x 4U Chassis
- 1 x 8-port 4U/Tower SAS3 12Gbps Hybrid backplane, support up to 4x 3.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devices
- 2 x MINI SAS-4 SATA,INT,64/54/44/34CM,64CM SB,30AWG
- 1 x STD I/O shield for X9/X10/X11 server MB with EMI Gasket & Mylar
- 1 x 7049GP-TRT User's Manual
- 2 x 4U Active CPU Heat Sink Supporting Narrow Bolster Plate Mounting Mechanism for X11 Purley Platform
- 2 x 1U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm
- 2 x 80x80x38 mm 4-pin PWM Fan Assembly for SC743, SC745
- 2 x 92x38mm 4-PIN PWM FAN W/ HUS for SC747
- 2 x 92x92x38 mm, 7.5K RPM, SC747 Middle Fan for Passive Cooling GPU
- 1 x Power Distributor for 4U GPU solution
Number of Processors Supported: 2
Processor Socket: Socket P LGA-3647
Processor Supported: Xeon
64-bit Processing: Yes
Chipset Manufacturer: Intel
Chipset Model: C621
Maximum Memory Supported: 2 TB
Memory Technology: DDR4 SDRAM
Memory Standard: DDR4-2666/PC4-21300
Total Number of Memory Slots: 16
Controller Type: Serial ATA/600
RAID Supported: Yes
Graphics Controller Model: AST2500
Ethernet Technology: 10 Gigabit Ethernet
Number of Total Expansion Bays: 8
Number of 3.5" Bays: 8
Total Number of Expansion Slots: 7
Number of PCI Express x4 Slots: 1
Number of PCI Express x16 Slots: 6
Total Number of USB Ports: 9
Number of USB 3.0 Ports: 5
Number of SATA Interfaces: 10
Input Voltage: 120 V AC,230 V AC
Number of Power Supplies Installed: 2
Maximum Power Supply Wattage: 2.20 kW
Color Family: Black
Product Color: Black
Form Factor: Tower
Rack Height: 4U
Height: 18.20" (462.28 mm)
Width: 7" (177.80 mm)
Depth: 26.50" (673.10 mm)
Weight (Approximate): 46 lb (20865.25 g)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 3 Year
- Intel Xeon processor provides high performance, built-in security, and remote management for enterprise systems
- DDR4 SDRAM slot reduces processor idle time, improving multitasking and overall computing speed
- Tower form factor is ideal for hosting internal apps, websites, or sensitive data with dependable performance
- With Serial ATA/600 interface, experience high-speed data transfer and robust reliability for optimized system performance
- 10 Gigabit Ethernet optimizes network performance, ensuring rapid data transfer for enterprise and high-speed environments
- Featuring 9 USB ports to connect USB-compatible devices for enhanced flexibility and convenience
[custom-specifications]
| Specifications | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | SYS-7049GP-TRT |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Line | SuperServer |
| Product Model | 7049GP-TRT |
| Product Name | SuperServer 7049GP-TRT (Black) |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 2 |
| Processor Socket | Socket P LGA-3647 |
| Processor Supported | Xeon |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621 |
| Memory | |
| Maximum Memory Supported | 2 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2666/PC4-21300 |
| Total Number of Memory Slots | 16 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Display & Graphics | |
| Graphics Controller Model | AST2500 |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 8 |
| Number of 3.5" Bays | 8 |
| Total Number of Expansion Slots | 7 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x16 Slots | 6 |
| Interfaces/Ports | |
| Total Number of USB Ports | 9 |
| Number of USB 3.0 Ports | 5 |
| Number of SATA Interfaces | 10 |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 2.20 kW |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Tower |
| Rack Height | 4U |
| Height | 18.20" (462.28 mm) |
| Width | 7" (177.80 mm) |
| Depth | 26.50" (673.10 mm) |
| Weight (Approximate) | 46 lb (20865.25 g) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
