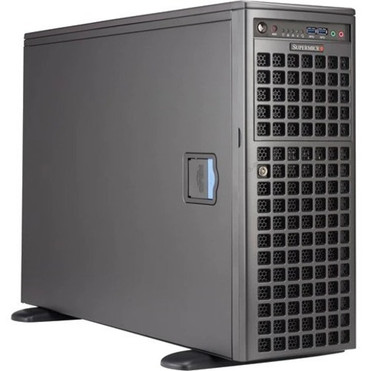

Supermicro SuperWorkstation SYS-540A-TR Server Barebone System - Tower - Socket LGA-4189 - 1 x Processor Support - Intel C621A Chip - (SYS-540A-TR)

Number of Processors Supported: 1

Processor Socket: Socket LGA-4189

Processor Supported: Xeon Bronze,Xeon Silver,Xeon Gold,Xeon Platinum

64-bit Processing: Yes

Chipset Manufacturer: Intel

Chipset Model: C621A

Maximum Memory Supported: 4 TB

Memory Technology: DDR4 SDRAM

Memory Standard: DDR4-3200/PC4-25600

Total Number of Memory Slots: 16

Controller Type: Serial ATA/600

Ethernet Technology: 10 Gigabit Ethernet,Gigabit Ethernet

Number of Total Expansion Bays: 11

Number of External 5.25" Bays: 3

Number of 3.5" Bays: 8

Total Number of Expansion Slots: 7

Number of PCI Express x4 Slots: 4

Total Number of USB Ports: 13

Number of USB 3.2 Gen 1 Ports: 6

Number of USB 3.2 Gen 2 Ports: 2

Number of SATA Interfaces: 8

Number of VGA Ports: 1

Maximum Power Supply Wattage: 2.20 kW

Color Family: Black

Product Color: Black

Form Factor: Tower

Height: 18.10" (459.74 mm)

Width: 7" (177.80 mm)

Depth: 26.50" (673.10 mm)

Weight (Approximate): 52.91 lb (24000 g)

Package Contents:

• UP Workstation SYS-540A-TR
• 1 x Super X12SPA-TF Motherboard
• 1 x Full-Tower Chassis
• 1 x 8-port 4U/Tower SAS3 12Gbps Hybrid backplane, support up to 4x 3.5-inch SAS3/SATA3 HDD/SSD and 4x NVMe/SAS3/SATA3 storage devices
• 8 x 55CM 30AWG SATA S-S CBL
• 2 x 8 Pin to 8 Pin Round SGPIO Cable, 40cm, 28AWG, Pinout 1-1
• 4 x PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW
• 1 x STD I/O Shield for X12SPA-TF with EMI Gasket
• 1 x 540A-TR Quick Reference Guide
• 4 x 22W x 129.65L x 4.35H mm, Al., Screws, Pad, Anodized
• 1 x 4U Active CPU Heat Sink for X12 Generation UP Gaming and Workstations
• 2 x 1U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm
• 1 x Power Distributor Board is for 4U GPU solution using regular
• 1 x ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
• 2 x US POWER CORD 16AWG, PB FREE
• 4 x 4 TO 4 PIN FAN POWER CABLE, 210MM
• 2 x 4 TO 4 PIN REAR FAN PWR EXT W/ SQUARE HEADER, 30CM (PWM)
• 2 x 80x80x38 mm 4-pin PWM Fan Assembly for SC743, SC745
• 2 x 92x38mm 4-PIN PWM FAN W/ HUS for SC747
• 2 x 92x92x38 mm, 7.5K RPM, SC747 Middle Fan for Passive Cooling GPU
• 1 x SC747 plastic front bezel
• 3 x Black 5.25 drive tray w/o rail (SC747)
• 8 x Black gen 6.5 hot-swap 3.5 inch HDD Tray
• 1 x SC747BTQ-R2K04B Front Control Panel PCB (2x USB3.0, Audio)
• 1 x Black plastic top cover for SC747
• 1 x GPU Card Holder (11 slots) for SC747TQ, SC842
• 1 x fixed 3.5" dummy cover for SC747
• 1 x Plastic feet (2 pcs/set) for 4U tower chassis, black color
