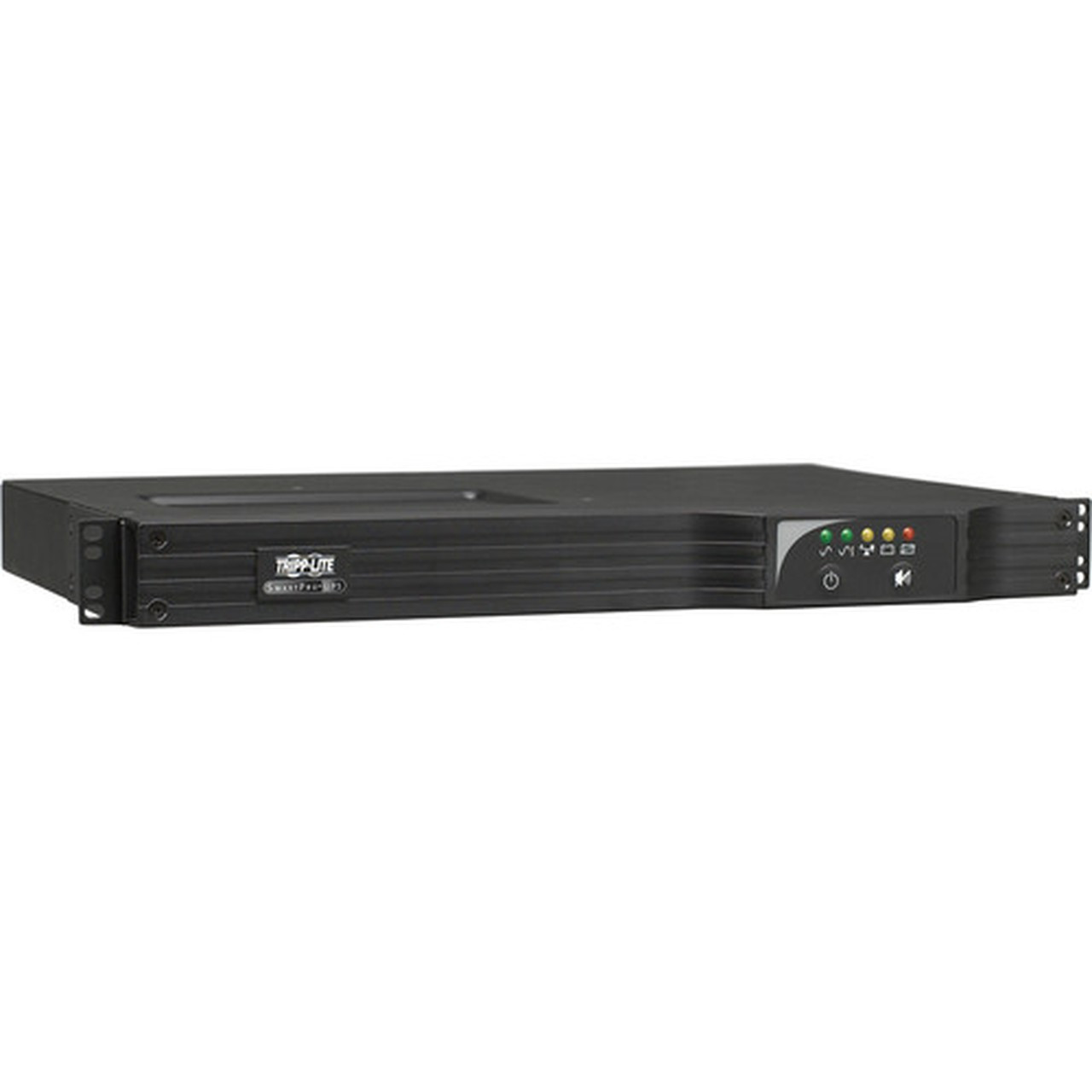

Tripp Lite SmartPro SMART1000RM1U 1000VA Rack-mountable UPS - 1U Rack-mountable - 4.50 Hour Recharge - 4 Minute Stand-by - 120 V AC - (SMART1000RM1U)

Marketing Information: Protects Mission-Critical Rack-Mounted Equipment

• Provides fully regulated sine wave AC output for servers, network storage devices and telecom hardware
• Audible alarm signals loss of utility power, overload and low battery

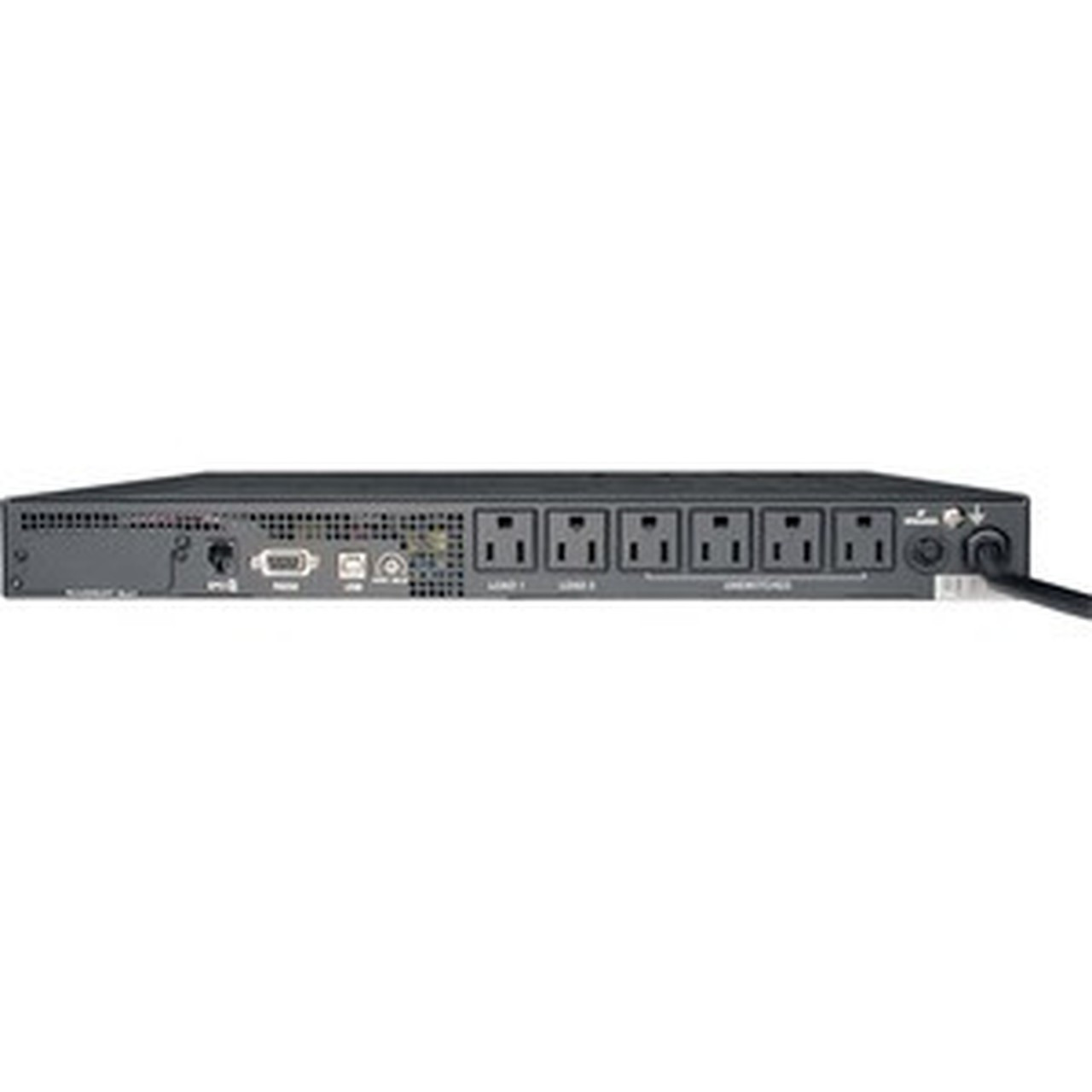

• 6 NEMA 5-15R outlets
• 10 t. (3.1 m) power cord with 120V NEMA 5-15P input
• 450-joule surge suppression rating

• Supports half load up to 14 min. and full load up to 4 min.
• Internal batteries designed for hot-swap field replacement

• 2 load banks, each with one outlet individually controllable via software interface to reboot equipment or shed nonessential loads

• Maintains 120V nominal output over input range of 83V-147V without using battery power

• Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance

• 99% line mode efficiency saves money, energy and protects the environment

• Compatible with Tripp Lite UPS management card options TLNETCARD, WEBCARDLX and SNMPWEBCARD

• USB and DB9 ports combine with PowerAlert software (available via free download from www.tripplite.com/poweralert) to monitor operating conditions, monitor AC power, and enable safe unattended system shutdown and file saves in case of a prolonged power failure
• EPO port supports emergency shutdown in large facilities

• Hardware included for mounting in 1U of EIA-standard 19 in. 2- or 4-post rack
• Optional 4POSTRAILKIT1U accessory available for extra support in 4-post installations
• Compatible with vertical mount cabinets

More from the Manufacturer

Plug/Connector Type: NEMA 5-15P

Receptacle Type: NEMA 5-15R

Receptacle Detail: 6 x NEMA 5-15R

Transfer Time: 5 ms

Application/Usage: Data Center,VoIP Phone System,Computer

Load Capacity (VA): 1 kVA

Load Capacity (Watt): 800 W

Input Voltage: 120 V AC

Output Voltage: 110 V AC,115 V AC,120 V AC

Waveform Type: Pure Sinusoidal

Backup/Run Time (Full Load): 4 Minute

Hot Swappable: Yes

Typical Battery Recharge Time: 4.50 Hour

Height: 1.75" (44.40 mm)

Width: 17.50" (444.50 mm)

Depth: 16.75" (425.40 mm)

Rack Height: 1U

Form Factor: Rack-mountable

Weight (Approximate): 14.51 kg

Package Contents:

• SmartPro 1000RM1U UPS
• SMART 1000RM1U UPS System
• Mounting hardware
• Cabling for USB & DB9 monitoring and EPO switching
• PowerAlert unattended shutdown and UPS/Power monitoring software
• Warranty information and instruction manual

Country of Origin: China

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 3 Year
