Tripp Lite by Eaton SmartPro SMART750RM1UN 750VA Rack-mountable - 1U Rack-mountable - 13.20 Minute Recharge - 4.90 Minute Stand-by - V (SMART750RM1UN)
- SmartPro SMART750RM1UN 750VA Rack-mountable
- Mounting Hardware
- Cabling for USB & DB9 Monitoring and EPO Switching
- PowerAlert Unattended Shutdown and UPS/Power Monitoring Software
- Instruction Manual
Marketing Information: Tripp Lite SMART750RM1U 750VA /.75kVA / 600 watt line interactive, sine wave UPS system offers complete power protection for critical network applications in a highly efficient 1U total rack/tower configuration. Network management interfaces support communications via USB port, DB9 serial port and pre-installed WEBCARDLX network management interface card. The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. Line interactive voltage regulation, network-grade surge suppression and long-lasting sine wave AC output during blackouts make this UPS ideal for advanced networking applications in datacenters, computer rooms and network closets.
Receptacle Type: NEMA 5-15R
Receptacle Detail: 6 x NEMA 5-15R
Load Capacity (VA): 750 VA
Load Capacity (Watt): 600 W
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Backup/Run Time (Full Load): 4.90 Minute
Typical Battery Recharge Time: 13.20 Minute
Height: 1.70" (43.18 mm)
Width: 17.50" (444.50 mm)
Depth: 16.80" (426.72 mm)
Rack Height: 1U
Form Factor: Rack-mountable
Weight (Approximate): 30 lb (13607.77 g)
Package Contents:
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 3 Year
- .75kVA / 750VA / 600W line interactive 1U rackmount UPS, Sine wave output
- 120V output, Corrects brownouts and overvoltages from 83V to 147V

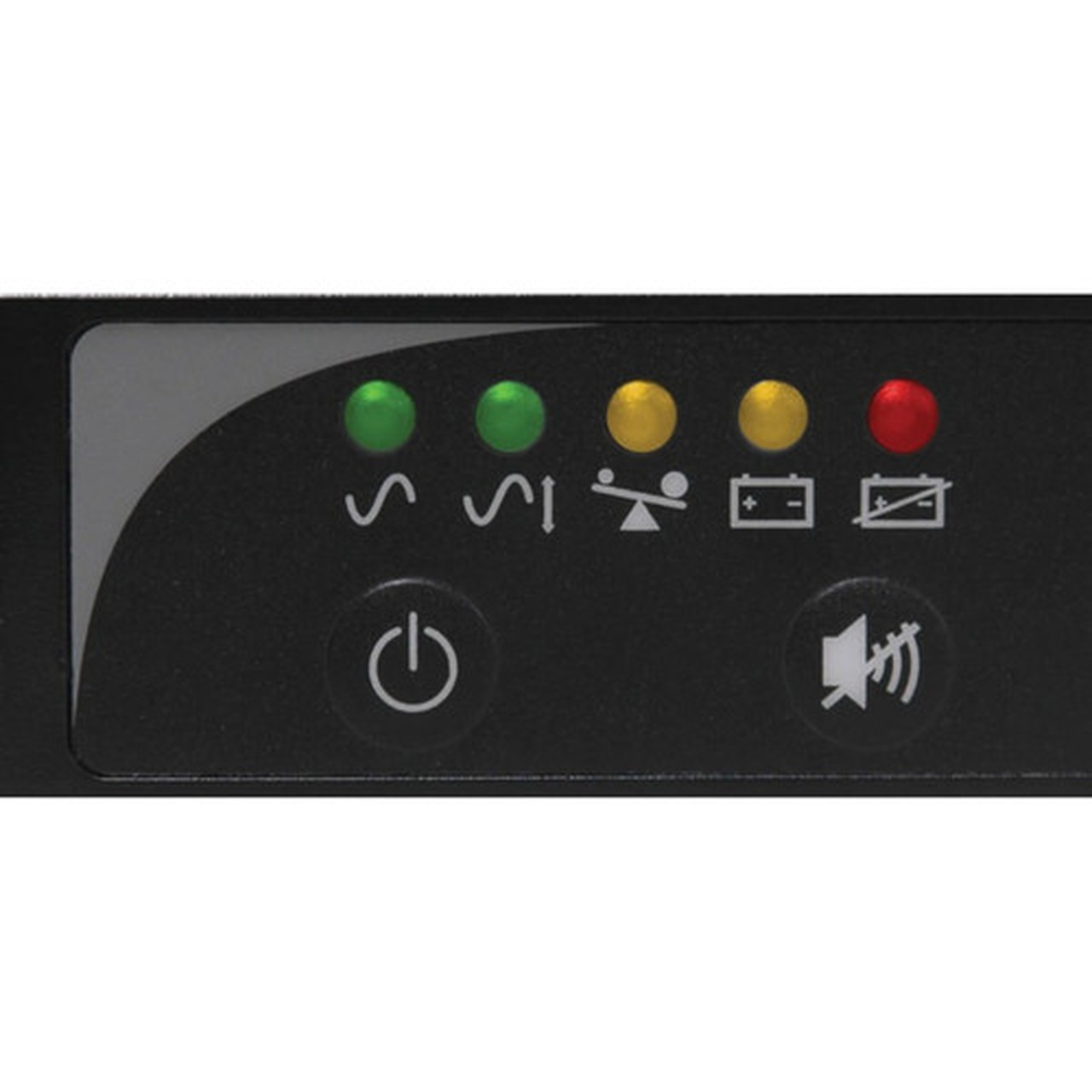

- 0.8 Power Factor, Front panel status LEDs
- Mounting brackets support 2 and 4 post installation
- 98% line-mode efficiency, 2 switched load banks
- USB, RS232, EPO and Pre-installed WEBCARDLX Network Interface
- 120V NEMA 5-15P input, 6 NEMA 5-15R outlets
[custom-specifications]
| Specifications | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SMART750RM1UN |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Brand Name | Tripp Lite by Eaton |
| Product Line | SmartPro |
| Product Model | SMART750RM1UN |
| Product Name | SmartPro SMART750RM1UN 750VA Rack-mountable |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Power Description | |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 600 W |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Battery Information | |
| Backup/Run Time (Full Load) | 4.90 Minute |
| Typical Battery Recharge Time | 13.20 Minute |
| Physical Characteristics | |
| Height | 1.70" (43.18 mm) |
| Width | 17.50" (444.50 mm) |
| Depth | 16.80" (426.72 mm) |
| Rack Height | 1U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 30 lb (13607.77 g) |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
