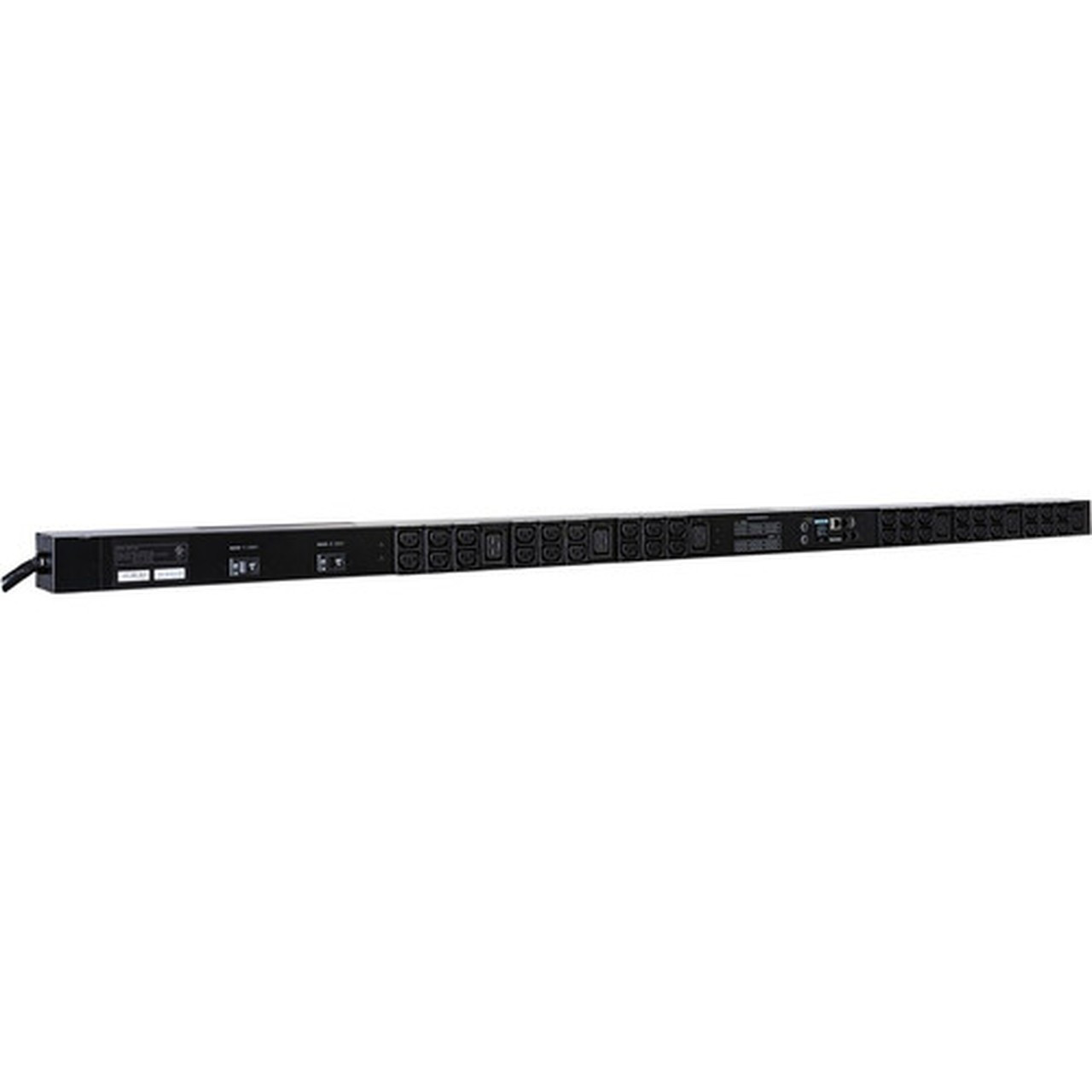

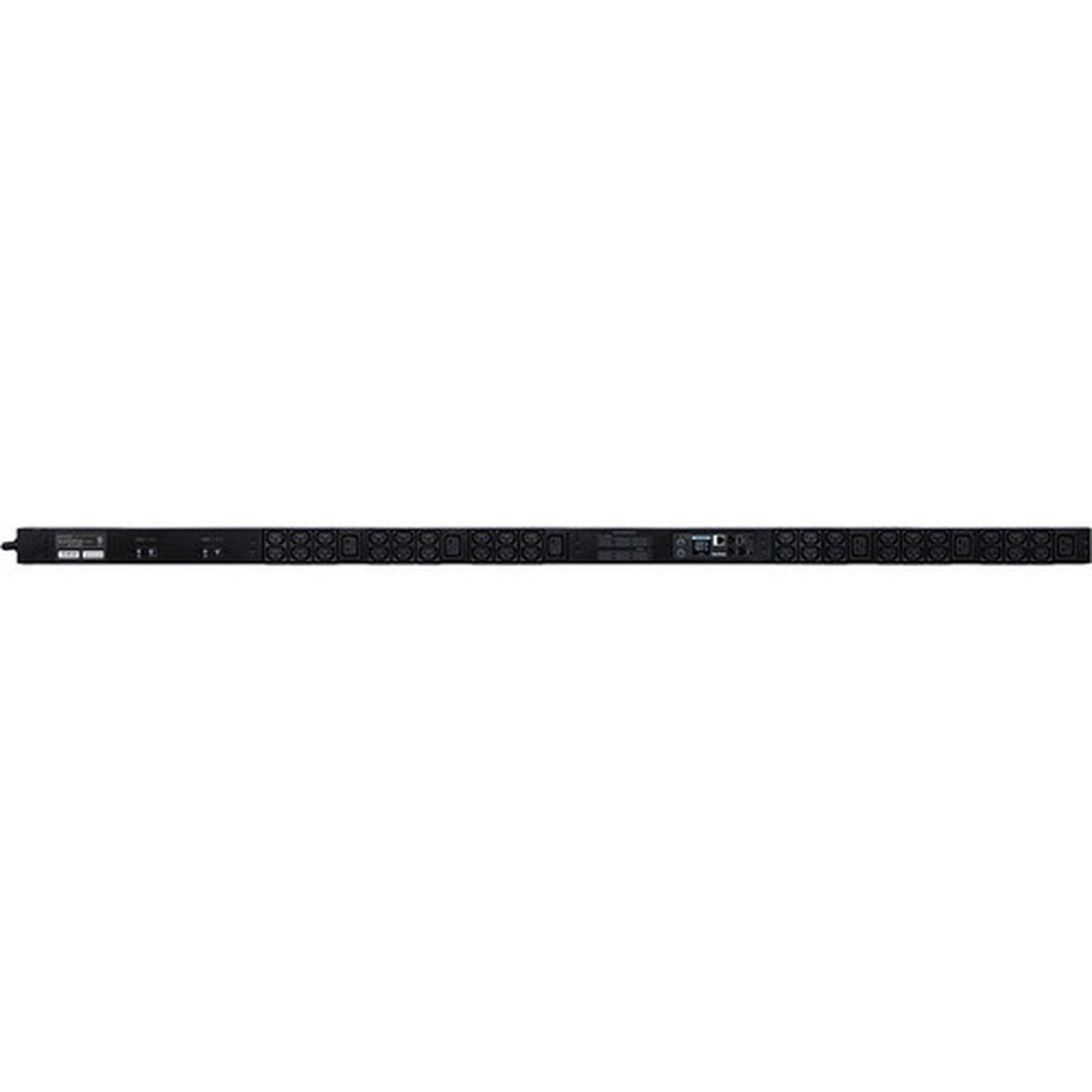

CyberPower PDU31106 Monitored PDU - Monitored - NEMA L6-30P - 6 x IEC 60320 C19, 36 x IEC 60320 C13 - 230 V AC - Network (RJ-45) - 0U (PDU31106)

Marketing Information: The CyberPower PDU31106, a 42-outlet (front), 0U rackmount monitored power distribution unit (PDU), provides 200-240V 30A output. PDU31106 distributes power to 36 IEC-320 C13 and 6 IEC-320 C19 receptacles from a single NEMA L6-30P plug with unfiltered electrical pass-through. Monitor power status over the network using the CyberPower management console and the RJ45 Ethernet port for network connection. Monitor power status locally by using the LCD screen. The PDU31106 comes with a three-year limited warranty that covers defects in materials and workmanship in the product under normal use and conditions.

• Switch-Free Design
• Remote and Local Monitoring
• Automatic Event Notifications
• Network-Grade Plugs and Outlets

PDU Type: Monitored

Phase: Single Phase

Plug/Connector Type: NEMA L6-30P

Receptacle Type: IEC 60320 C19,IEC 60320 C13

Receptacle Detail: 6 x IEC 60320 C19,36 x IEC 60320 C13

Protection Type: Overload Protection

Input Voltage: 230 V AC

Input Voltage Range: 200 V AC - 240 V AC

Output Voltage Range: 200 V AC - 240 V AC

Input Current: 30 A

Management: SNMP / HTTP Remote Monitoring:

• IPv4
• TCP/IP
• UDP
• SNMPv1
• HTTP
• NTP
• DNS
• Telnet
• DHCP
• SMTP
• FTP
• IPv6
• SNMPv3
• HTTPs
• SSH
• SSL
• TLS
• LDAP(S)
• RADIUS
• Syslog
• CLI
• Windows AD

Network (RJ-45): Yes

Mounting Orientation: Vertical

Mount Type: Rack-mountable,Wall-mountable

Rack Height: 0U

Height: 65.50" (1663.70 mm)

Width: 2.20" (55.88 mm)

Length: 1.90" (48.26 mm)

Weight (Approximate): 5.60 kg

Package Contents:

• PDU31106 Monitored PDU
• Cord Retention Tray/Cord Organizers
• 1 x Adjustable Mounting Brackets set

Country of Origin: China

Environmentally Friendly: Yes

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 3 Year
