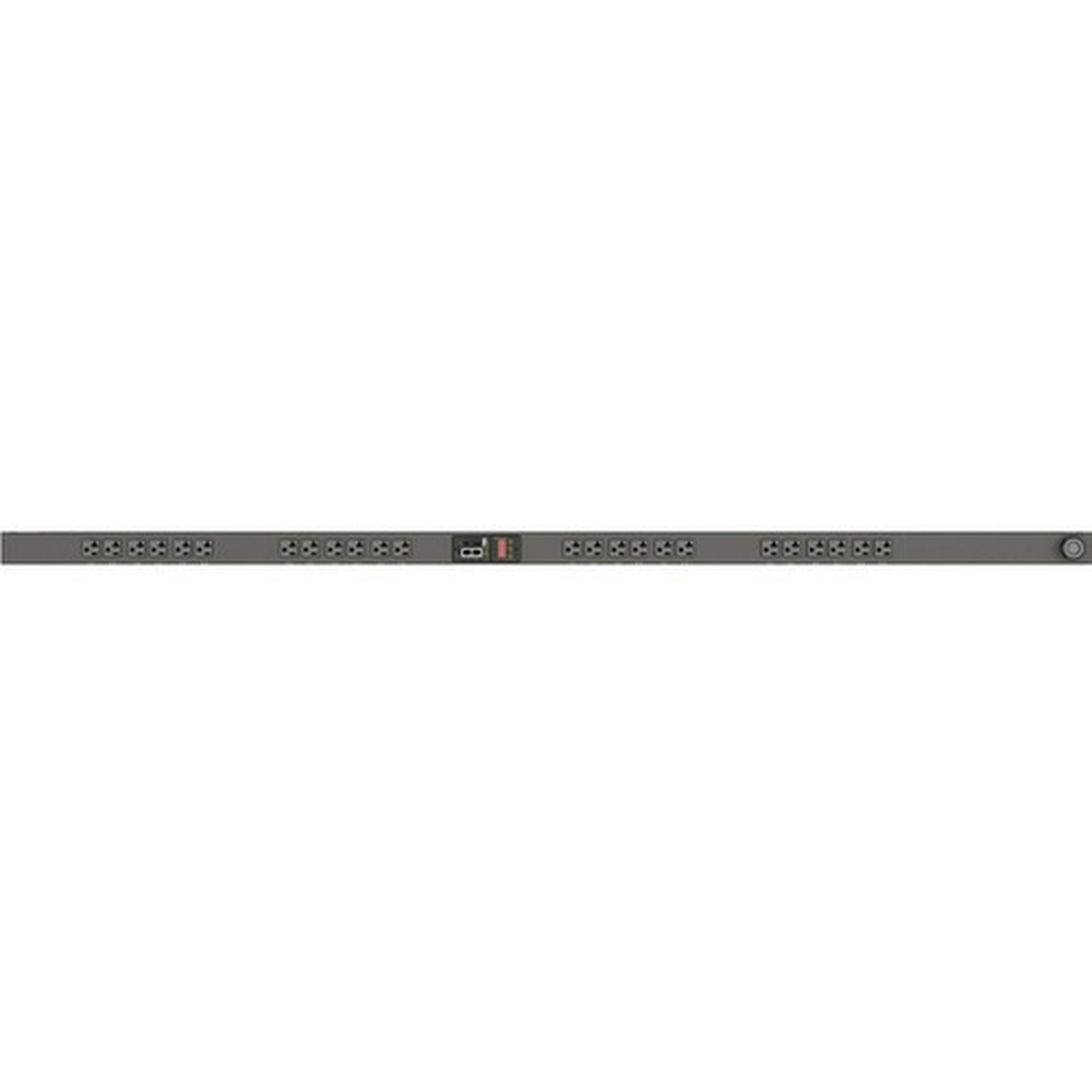

Geist rPDU MNU3EGB0-24S203-2ST5A0A10-S 24-Outlets PDU - Switched - NEMA 5-20P - 24 x NEMA 5-20R - 120 V AC - Network (RJ-45) - 0U - - (NU30004)

(No reviews) Write a Review
$2,911.00
$2,823.67
$1,875.66
(You save $1,035.34 )
SKU: NU30004
Weight: 1.00 LBS
Adding to cart… The item has been added
  • With PDUs decisions for load balancing and minimizing extra cost can be managed
  • Remotely control individual outlets for rebooting of locked equipment with switched PDUs
    Marketing Information:

    Upgradeable Switched Outlet Level Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering individual outlet level control and a comprehensive view of outlet level power usage via remote network access. Includes environmental monitoring capabilities to obtain real-time environmental metrics. With the Geist Upgradeable hot-swap technology, users may easily update the rPDU technology with the addition of the appropriate Interchangeable Monitoring Device (IMD) as business needs change.

    Benefits

    • Remotely reboot outlets to power cycle unresponsive IT equipment or increase runtime of critical equipment upon power failure with outlet-level control.
    • Reliable power distribution with local and remote outlet-level power monitoring options offer quick access to critical power usage information down to the device level to evaluate energy usage trends and maximize uptime.
    • Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
    • Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs.
    • Daisy-chain up to 50 devices on a single IP address and reduce deployment time with self-configuration of downstream devices.

    PDU Type: Switched
    Plug/Connector Type: NEMA 5-20P
    Plug/Connector Detail: 1 x NEMA 5-20P
    Receptacle Type: NEMA 5-20R
    Receptacle Detail: 24 x NEMA 5-20R
    Input Voltage: 120 V AC
    Output Voltage: 120 V AC
    Power Rating (Watt): 1.90 kW
    Input Current: 20 A
    Management:
    • DHCP
    • HTTP
    • HTTPS
    • IPv4
    • IPv6
    • LDAP
    • NTP
    • RADIUS
    • RSTP
    • SSH
    • SMTP
    • SNMP (v1/v2c/v3)
    • Syslog
    • TACACS+

    Remote Outlet Switching: Yes
    Network (RJ-45): Yes
    Mounting Orientation: Vertical
    Mount Type: Rack-mountable
    Rack Height: 0U
    Width: 2" (50.80 mm)
    Depth: 2.60" (66.04 mm)
    Length: 66.25" (1682.75 mm)
    Environmentally Friendly: Yes
    Country of Origin: United States
    TAA Compliant: Yes
    Limited Warranty: 5 Year

[custom-specifications]

Specifications
Manufacturer: Vertiv
Manufacturer Part Number: NU30004
Manufacturer Website Address: http://www.vertiv.com/
Brand Name: Geist
Product Series: rPDU
Product Model: MNU3EGB0-24S203-2ST5A0A10-S
Product Name: rPDU MNU3EGB0-24S203-2ST5A0A10-S 24-Outlets PDU
Product Type: PDU
Technical Information
PDU Type: Switched
Plug/Connector Type: NEMA 5-20P
Plug/Connector Detail: 1 x NEMA 5-20P
Receptacle Type: NEMA 5-20R
Receptacle Detail: 24 x NEMA 5-20R
Power Description
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Power Rating (Watt): 1.90 kW
Input Current: 20 A
Management
Management:
  • DHCP
  • HTTP
  • HTTPS
  • IPv4
  • IPv6
  • LDAP
  • NTP
  • RADIUS
  • RSTP
  • SSH
  • SMTP
  • SNMP (v1/v2c/v3)
  • Syslog
  • TACACS+

Remote Outlet Switching: Yes
Interfaces/Ports
Network (RJ-45): Yes
Physical Characteristics
Mounting Orientation: Vertical
Mount Type: Rack-mountable
Rack Height: 0U
Width: 2" (50.80 mm)
Depth: 2.60" (66.04 mm)
Length: 66.25" (1682.75 mm)
Miscellaneous
Environmentally Friendly: Yes
Country of Origin: United States
TAA Compliant: Yes
Warranty
Limited Warranty: 5 Year

[/custom-specifications]

[custom-user-manual]

User Manual

[/custom-user-manual]
5 Year
